Kombînasyona Klavyeya Bêtêl û Mişkê KOORUI (Model BKM01) Rêbernameya Bikarhêner

Product Overview

The KOORUI Wireless Keyboard and Mouse Combo (Model BKM01) provides a versatile input solution for various computing environments. This combo supports both 2.4G wireless and Bluetooth connectivity, offering flexibility and ease of use. The keyboard features a full-size layout with multimedia shortcut keys, while the mouse offers adjustable DPI settings and an ergonomic design.

Image: The KOORUI Wireless Keyboard and Mouse Combo, featuring a black full-size keyboard, a black optical mouse, and a small USB receiver.

Naveroka pakêtê

• One Wireless Keyboard
• One Wireless Mouse
• One 2.4G USB Receiver (located in the back of the mouse)
• One Type-C Charging Cable
• Yek Manual Bikarhêner

Talîmatên Setup

1. Locate the USB Receiver

The 2-in-1 USB receiver for both the keyboard and mouse is stored in a compartment on the underside of the mouse. Gently pull it out.

2. Connect to Your Device (2.4G Wireless Mode)

1. Insert the 2.4G USB receiver into an available USB port on your computer (PC, laptop, etc.).
2. Bi karanîna guhêrbarên VEKIRÎ/GIRTÎ yên wan klavyeyê û mişkê vekin.
3. The devices should automatically connect to your computer. No additional software or drivers are required for 2.4G mode.

3. Connect to Your Device (Bluetooth Mode)

The keyboard and mouse support Bluetooth connectivity for two separate devices (BT1 and BT2). To pair:

1. Turn on the keyboard/mouse.
2. Press the BT1 or BT2 button on the keyboard/mouse to select the desired Bluetooth channel. The corresponding indicator light will blink.
3. Li ser komputer an cîhaza xwe, Bluetooth-ê çalak bike û li cîhazên nû bigere.
4. Select "KOORUI Keyboard" or "KOORUI Mouse" from the list of available devices to pair.
5. Once paired, the indicator light will stop blinking and remain solid.

Wêne: Nêzîk view of the keyboard and mouse, highlighting the ON/OFF switch, NUM, CAPS, and POWER indicators on the keyboard, the 2-in-1 USB receiver slot under the mouse, and the mouse's 300mAh battery compartment, along with forward and backward buttons.

Telîmatên Operating

Power On / Off

• Locate the ON/OFF switch on the top right of the keyboard and on the underside of the mouse.
• Slide the switch to 'ON' to power on the device, and to 'OFF' to power it down.

Multimedia Keys and Shortcut Functions

The keyboard features F1-F12 shortcut keys for enhanced productivity. To activate these functions, press the Fn bişkojka F ya xwestî bi hevdemî bişkojka wê re bitikînin.

• Fn+F1: Bêdeng
• Fn+F2: Volume Down
• Fn+F3: Volume Up
• Fn+F4: Previous Track
• Fn+F5: Play/Pause
• Fn+F6: Next Track
• Fn+F7: Kêmbûna Ronahî
• Fn+F8: Zêdebûna Ronahî
• Fn+F9: Hemî Hilbijêre
• Fn+F10: Kopî
• Fn+F11: Birrîn
• Fn+F12: Screenshot (Only supports Windows system)

The keyboard also includes dedicated buttons for 2.4G connection, BT1, BT2, Home Page, and a power switch.

Image: The KOORUI keyboard and mouse, illustrating the 12 shortcut functions (Fn+F1 to Fn+F12) and their corresponding actions, along with dedicated buttons for 2.4G, BT1, BT2, Home, and Power.

Mouse DPI Adjustment

The mouse offers 5 adjustable DPI settings to suit your preference for cursor speed and precision. The available DPI options are 800, 1200, 1600, 2000, and 2400 DPI. Press the DPI adjustment button (located near the scroll wheel) to cycle through these settings.

Teserûfa Enerjiyê ya Xweser

To conserve battery power, both the keyboard and mouse will enter sleep mode after 10 minutes of inactivity. To wake them up, simply press any key on the keyboard or move/click the mouse. The sleep mode duration cannot be adjusted.

Battery Rechargeable

The keyboard and mouse feature built-in rechargeable lithium batteries. A full charge takes approximately 3-4 hours and provides up to one month of battery life under typical usage conditions.

Lênerrînî

Design Waterproof û Dustproof

The keyboard is designed to be spill-proof, offering protection against accidental liquid spills. Its flat keys also facilitate easy cleaning of the spaces between keys.

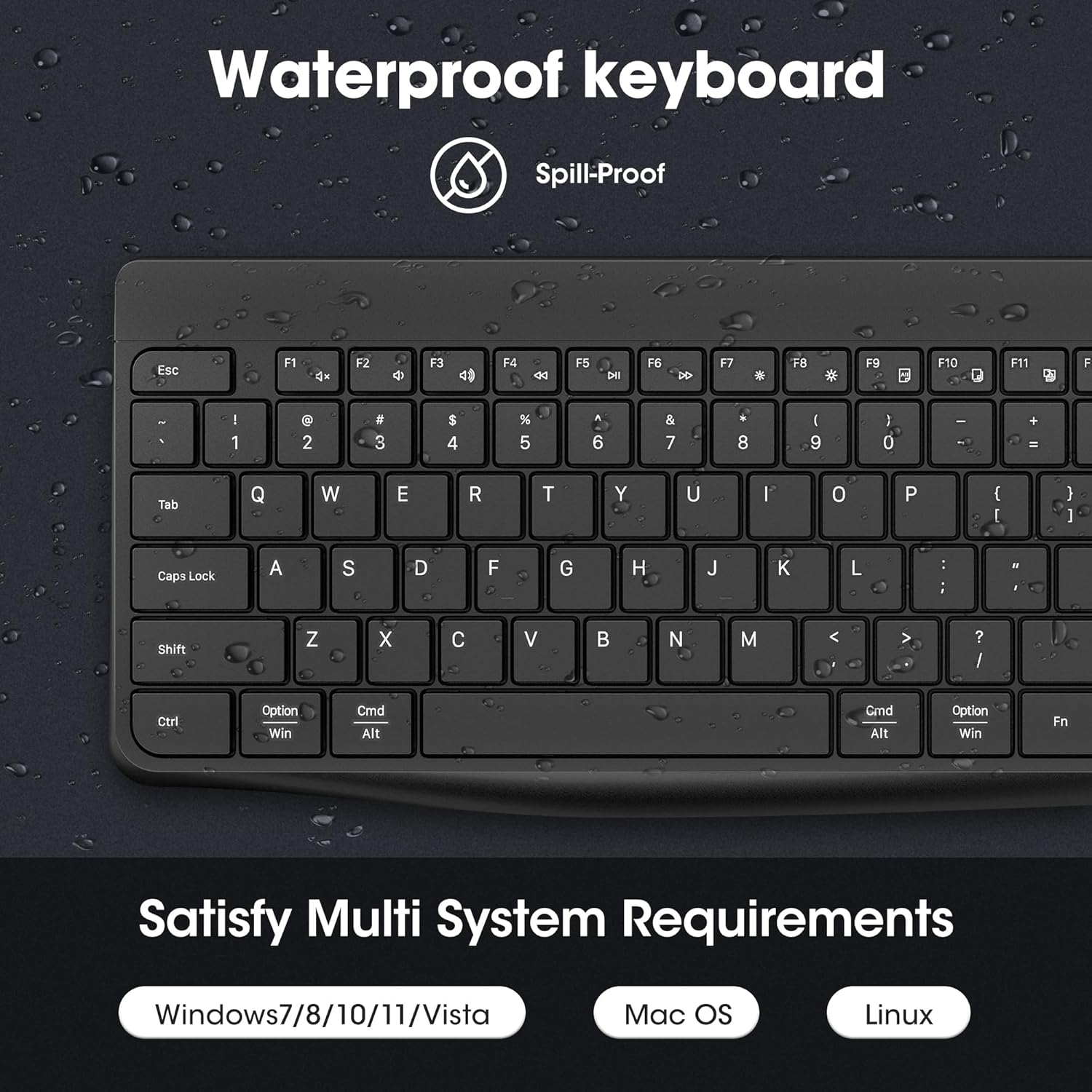

Image: A close-up of the KOORUI keyboard with water droplets on its surface, illustrating its waterproof and dustproof design. The image also indicates multi-system compatibility with Windows, Mac OS, and Linux.

Paqijî

To clean the keyboard and mouse, use a soft, damp cloth. Avoid using harsh chemicals or abrasive materials that could damage the surfaces. Ensure the devices are powered off before cleaning.

Çareserkirina pirsgirêkan

• Cannot find the wireless receiver: The 2-in-1 USB receiver is located under the back of the mouse. Gently pull it out.
• Jiyana bateriya kurt: Ensure the devices are fully charged (3-4 hours). Battery life is approximately one month per charge.
• Mouse responsiveness issues: Check the DPI setting. The mouse has 5 adjustable DPI options (800/1200/1600/2000/2400DPI). Adjust as needed.
• Multimedia keys not working on Mac: Fn+F1-F11 multifunctional keys support both Mac and Windows systems. However, Fn+F12 (screenshot) only supports the Windows system.
• Devices enter sleep mode too quickly: The keyboard and mouse enter sleep mode after 10 minutes of inactivity. This time cannot be changed. Press any key on the keyboard or move/click the mouse to wake them up.
• Pirsgirêkên din: If you encounter other problems, please contact the KOORUI support team for assistance.

Specifications

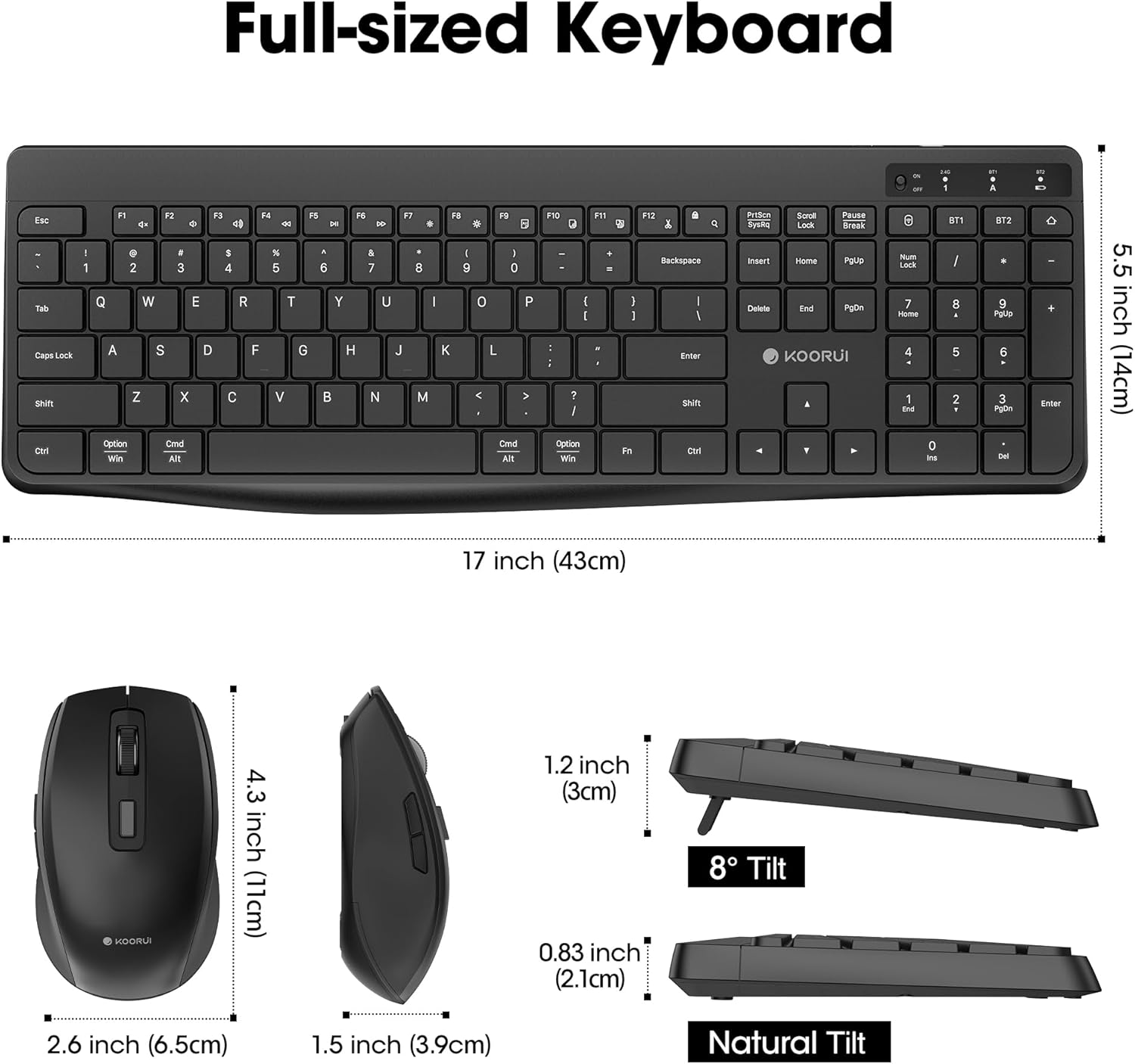

Image: Detailed dimensions of the KOORUI full-sized keyboard (17 inches wide, 5.5 inches deep) and mouse (2.6 inches wide, 4.3 inches long, 1.5 inches high), also showing the 8-degree tilt and natural tilt options for the keyboard.

Vîdyoya Hilberê

Garantî û Piştgirî

KOORUI provides a one-year warranty for this product. For any questions or issues, please contact the KOORUI support team for professional assistance.
