Pirtûka Lerizînê ya FLYBIRD 4D Rêbernameya Bikarhêner

1. Destpêk

Thank you for choosing the FLYBIRD 4D Vibration Plate. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new fitness equipment. Please read this manual thoroughly before initial use and retain it for future reference.

2. Telîmatên Ewlekariyê

Ji bo ku hûn bi ewlehî bixebitin û ji birîndarbûnê dûr bisekinin, ji kerema xwe rêwerzên ewlehiyê yên jêrîn bişopînin:

• Berî ku hûn dest bi bernameyeke werzîşê ya nû bikin, bi bijîşkekî re şêwir bikin, nemaze heke berê nexweşiyên we yên bijîşkî hebin.
• Do not use the device if you are pregnant, have a pacemaker, or suffer from acute thrombosis, severe diabetes, epilepsy, or recent surgery.
• Ensure the vibration plate is placed on a stable, level surface.
• Maintain a clear area around the device during operation.
• The maximum user weight capacity for this device is 500 pounds (226 kg). Do not exceed this limit.
• Di dema xebatê de zarok û heywanên heywanan ji cîhazê dûr bixin.
• Always hold onto a stable support if you feel unsteady during use.
• Stop using the device immediately if you experience pain, dizziness, or discomfort.
• Dema ku hûn amûrê bikar naynin an jî berî paqijkirinê, wê ji priza elektrîkê veqetînin.

3. Naveroka pakêtê

Piştrast bike ku hemî pêkhate di pakêtê de hene:

• FLYBIRD 4D Plate Vibration
• Kontrola ji dûr ve (1 bataryaya Lîtyûm Metal hewce dike, tê de ye)
• 4 Bandên Berxwedanê
• 2 Loop Bands
• Exercise Mat
• Manual Bikarhêner

jimar 3.1: The FLYBIRD 4D Vibration Plate shown with its complete set of accessories, including resistance bands, loop bands, an exercise mat, and the remote control.

4. Sazkirin

Ji bo sazkirina destpêkê van gavan bişopînin:

1. Ji berhevxistin: Bi baldarî hemî pêkhatan ji pakêtê derxînin.
2. Cihkirin: Place the vibration plate on a firm, level, and non-slip surface. Ensure there is adequate space around the device for safe movement.
3. Têkiliya Hêzê: Connect the power cord to the vibration plate and then to a grounded electrical outlet.
4. Kontrola dûr: Insert the included Lithium Metal battery into the remote control.
5. Exercise Mat: Place the exercise mat under the vibration plate for added stability and floor protection.

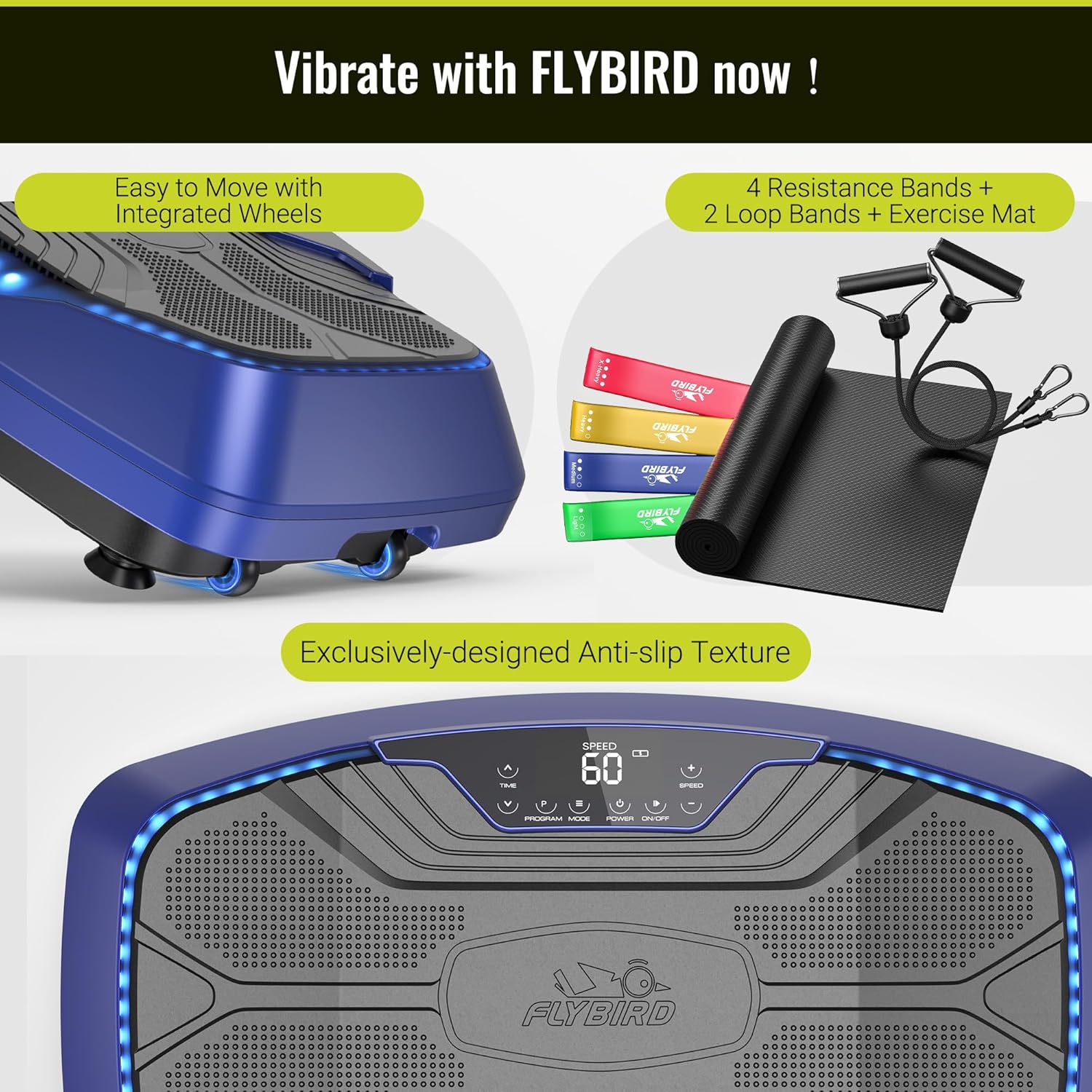

jimar 4.1: The vibration plate features integrated wheels for easy relocation and an exclusively designed anti-slip texture on the platform for user safety during exercise.

5. Telîmatên Operating

The FLYBIRD 4D Vibration Plate offers multiple modes and settings for a versatile workout experience.

5.1 Power On / Off

• Bitikîne ERK button on the LED touch screen or the remote control to turn the device on or off.

5.2 4D Vibration Modes

The device features triple high-performance motors, providing 7-in-1 4D vibration modes. These modes can be operated individually or in combination:

• Oscillation: Up-down motion.
• Linear: Side-to-side motion.
• Pulsasyon: Wave-like motion.
• Combinations of Oscillation + Linear, Oscillation + Pulsation, Linear + Pulsation, and Oscillation + Linear + Pulsation.

Bi kar tînin AWA button on the control panel or remote to cycle through the available vibration modes.

jimar 5.1: Visual representation of the three primary vibration types: side-to-side lateral vibration, up-down oscillation, and wave-like pulsation, which can be combined for 4D effects.

5.3 Speed Levels and Preset Programs

The vibration plate offers 99 speed levels and 9 preset programs for diverse training:

• Rêzkirinên Lezgîn: Bi kar tînin LEZK +/- buttons on the control panel or remote to increase or decrease the vibration intensity.
• Bernameyên Pêşkêşkirî: Bitikîne BERNAME button to select from the 9 pre-programmed workout routines.
• Nîşaneyên LED: Three LED light colors indicate the current speed level:
  • Green: Speed 1-30
  • Blue: Speed 31-60
  • Red: Speed 61-99

jimar 5.2: A user demonstrates an exercise on the vibration plate, highlighting the LED lights that change color to indicate the current speed level, ranging from 1 to 99.

5.4 Remote Control and Bluetooth Speaker

• Kontrola dûr: The included remote allows for convenient adjustment of power, mode, speed, and program settings without interrupting your workout.
• Axaftvanê Bluetooth: The built-in Bluetooth speaker allows you to connect your smartphone or other Bluetooth-enabled devices to play music during your exercise session. Refer to your device's Bluetooth pairing instructions to connect.

jimar 5.3: A user operates the vibration plate via the intuitive LED touch screen and remote control. The image also illustrates the built-in Bluetooth speaker functionality, allowing for music playback from a connected smartphone.

6. Rêbernameya Werzîşê

The FLYBIRD 4D Vibration Plate can be used for various exercises to stimulate muscles and improve circulation. The large pedal area (31.5" x 17.7") accommodates different stances and movements.

6.1 Basic Stances

• Rawestandin: Stand with feet shoulder-width apart, knees slightly bent. Adjust foot placement to vary intensity. Wider stance increases vibration intensity.
• Çûnûhatin: Perform squats on the plate to engage leg and glute muscles.
• Calf Raises: Stand on your toes to target calf muscles.

jimar 6.1: A man demonstrates a squat exercise on the vibration plate, highlighting the spacious 31.5" x 17.7" pedal area that allows for flexible foot positioning and various movements.

6.2 Bikaranîna Bendên Berxwedanê

Attach the included resistance bands to the designated anchor points on the plate for upper body and full-body exercises. The loop bands can be used for lower body resistance.

jimar 6.2: A man uses the vibration plate while incorporating resistance bands for a comprehensive full-body workout.

6.3 Feydeyên Bikaranînê

Regular use of the vibration plate may contribute to:

• Relief of back and leg pain.
• Accelerated recovery.
• Improved stability and flexibility.
• Increased blood and lymphatic circulation.
• Muscle toning and enhanced exercise effects.

jimar 6.3: An elderly man uses the vibration plate while seated, demonstrating its potential for gentle stimulation to aid in relaxation, recovery, and improved circulation.

7. Maintenance

Proper maintenance ensures the longevity and optimal performance of your vibration plate.

7.1 Paqijkirin

• Wipe the surface of the vibration plate with a soft, damp cilê piştî her karanîna.
• Do not use abrasive cleaners or solvents, as these can damage the finish.
• Beriya paqijkirinê pê ewle bin ku amûr ji pêvekê ye.

7.2 Storage

• Store the vibration plate in a cool, dry place away from direct sunlight and moisture.
• Ji danîna tiştên giran li ser cîhazê dûr bisekinin.
• The integrated wheels allow for easy movement and storage.

8. Destpêkirin

If you encounter any issues with your FLYBIRD 4D Vibration Plate, refer to the following table:

If the problem persists after attempting these solutions, please contact FLYBIRD customer support.

9. Specifications

Key technical details of the FLYBIRD 4D Vibration Plate:

10. Garantî û Piştgirî

FLYBIRD offers a lifetime warranty for this product, ensuring long-term reliability and customer satisfaction.

For technical support, warranty claims, or any questions regarding your FLYBIRD 4D Vibration Plate, please contact FLYBIRD customer service through the official brand website or your retailer's support channels. When contacting support, please have your model name (FBVP-4D-BLX) and purchase information readily available.
