1. Destpêk
This user manual provides essential information for the safe and efficient operation of your Bosch Series 6 KGN49LB30U freestanding refrigerator with bottom freezer. Please read these instructions carefully before installation and use, and keep them for future reference. Adhering to these guidelines will ensure optimal performance and extend the lifespan of your appliance.
1.1 Agahiyên Ewlekariyê
Always prioritize safety. Before using the appliance, read all safety warnings and instructions provided in this manual. Improper use can lead to personal injury or damage to the appliance. Ensure the appliance is properly grounded and installed by a qualified technician.
2. Hilbera Serîview
The Bosch Series 6 KGN49LB30U is a high-capacity, freestanding refrigerator designed for modern kitchens. It features a bottom freezer configuration, a sleek glass door, and advanced cooling technologies to keep your food fresh longer.
2.1 Taybetmendiyên sereke
- No Frost Technology: Pêşî li kombûna qeşayê digire, û pêwîstiya bi helandina destî ji holê radike.
- VitaFresh Plus: Optimized climate zones for fruits, vegetables, fish, and meat, maintaining freshness for extended periods.
- Pergala MultiAirflow: Ensures even temperature distribution throughout the refrigerator compartment.
- Super Cooling & Super Freezing: Rapidly cools or freezes newly added items to preserve their quality.
- VarioZone: Flexible freezer compartment with removable glass shelves for customizable storage space.
- Kapasîteya tevahî: 435 liters (330 liters refrigerator, 105 liters freezer).
- Deriyê cam: Elegant black glass finish.
2.2 Appliance Components

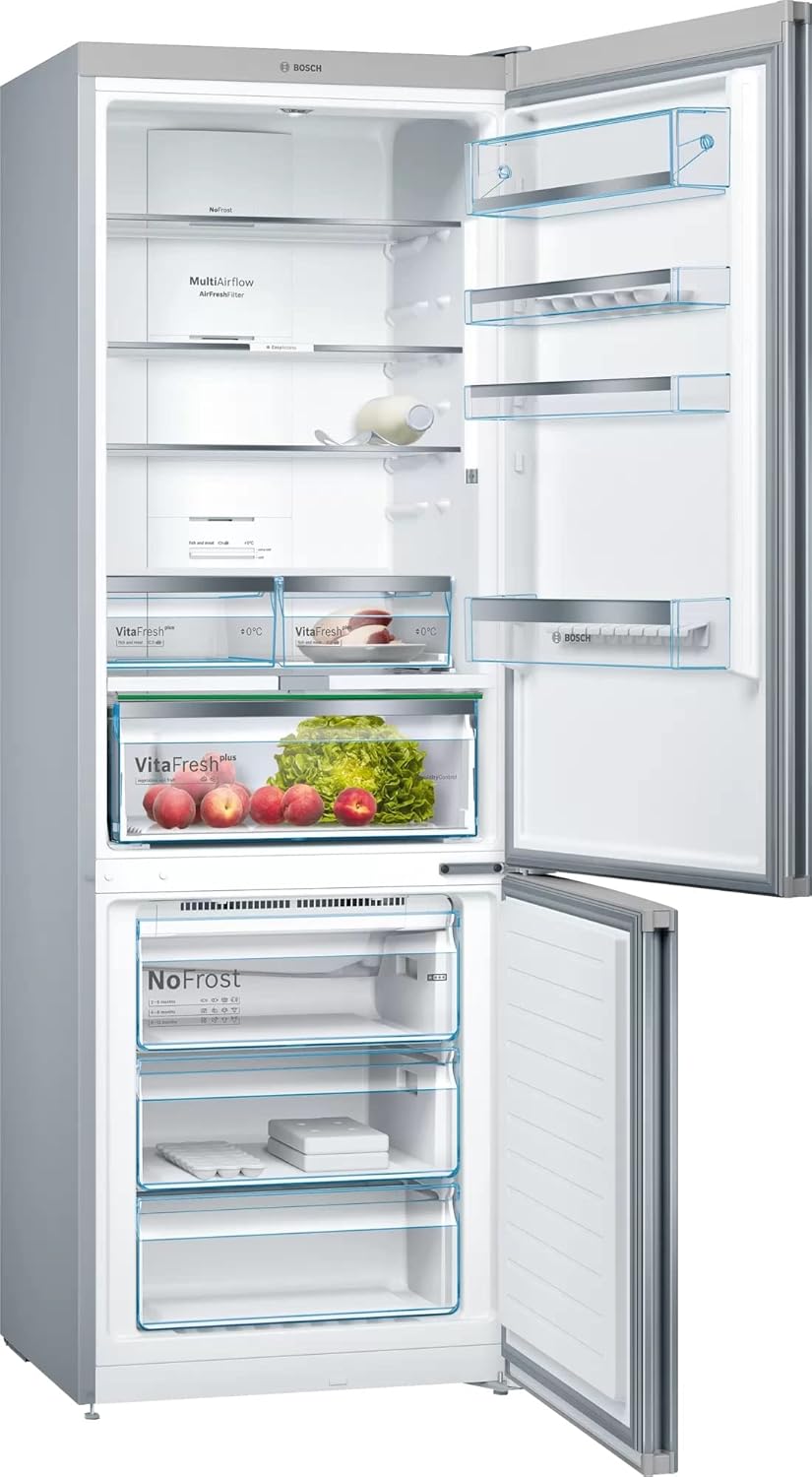

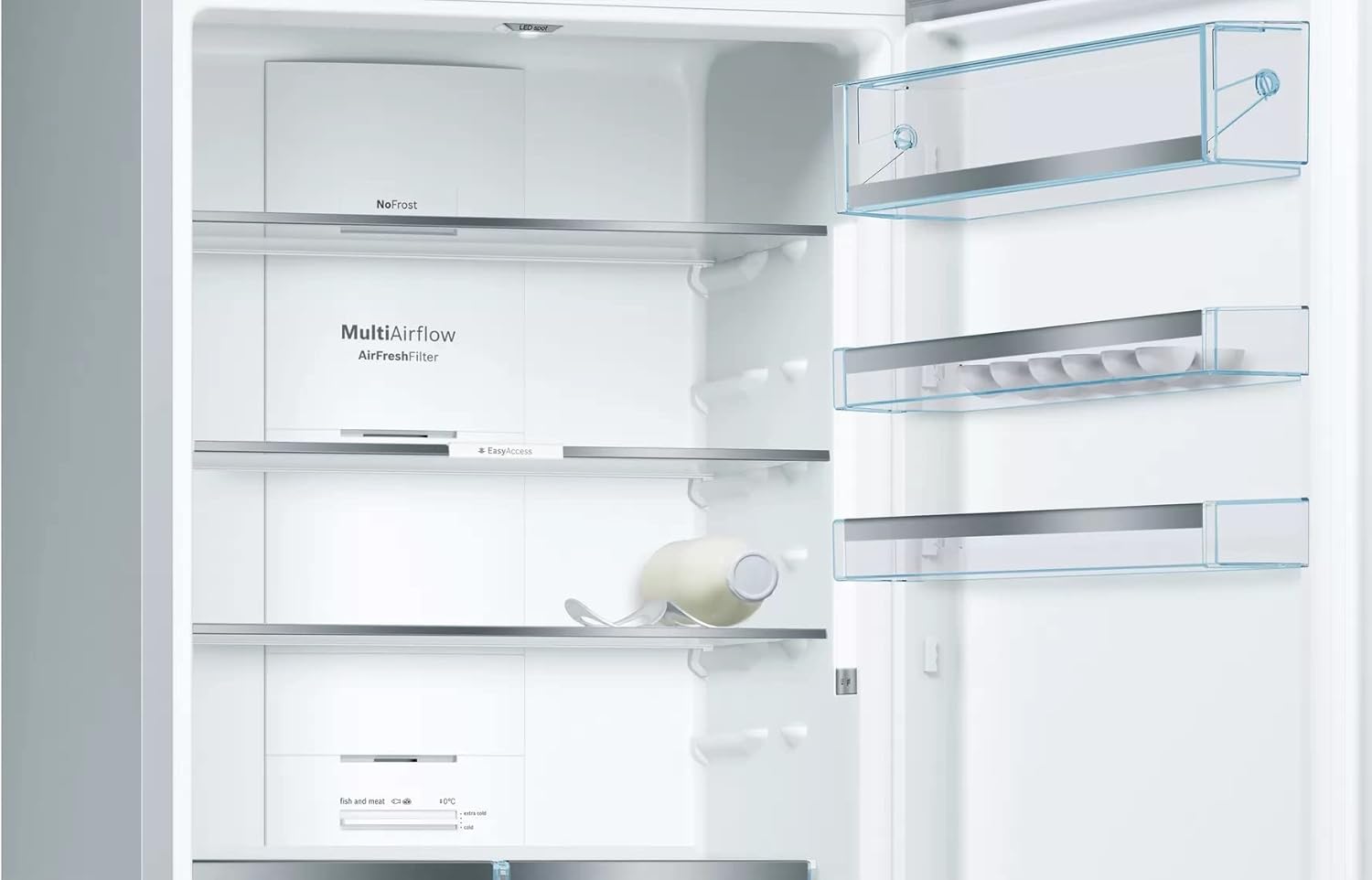

The refrigerator consists of a top fresh food compartment and a bottom freezer compartment. The fresh food section includes adjustable shelves, door bins, and specialized VitaFresh Plus drawers. The freezer section features multiple drawers and shelves for organized storage.
3. Sazkirin
3.1 Vekirin
Carefully remove all packaging materials. Inspect the appliance for any signs of damage during transit. Report any damage to your retailer immediately. Keep packaging materials away from children.
3.2 Cihkirin
- Sarincokê deynin ser rûyek hişk û astî.
- Ensure adequate ventilation around the appliance. Maintain a minimum clearance of 5-10 cm on the sides and back, and at least 10 cm above.
- Avoid direct sunlight and heat sources (e.g., radiators, ovens).
- Li deverên ku germahî dibe ku ji 10°C (50°F) kêmtir dakeve, saz nekin.
- Dimensions: Approximately 203 cm (Height) x 70 cm (Width) x 67 cm (Depth). Allow extra space for door opening.
3.3 Girêdana Elektrîkê
Connect the appliance to a properly grounded electrical outlet. Ensure the voltage and frequency match the specifications on the rating plate. Do not use extension cords or multiple socket adapters.
3.4 Operasyona Destpêkê
After placement and connection, wait at least 4 hours before plugging in the appliance. This allows the refrigerant to settle. Once plugged in, set the desired temperatures. The refrigerator will reach optimal cooling performance within 24 hours.
4. Telîmatên Operating
4.1 Panela Kontrolê
The digital control panel, located on the exterior of the appliance, allows you to adjust temperatures and activate special functions. It typically displays the current temperatures for both the refrigerator and freezer compartments.
4.2 Kontrola Germahiya
- Germahiya sarincokê: Use the 'Fridge' button or arrows on the control panel to set the desired temperature, typically between +2°C and +8°C. A setting of +4°C is generally recommended.
- Germahiya cemidandinê: Use the 'Freezer' button or arrows to set the desired temperature, typically between -16°C and -24°C. A setting of -18°C is generally recommended.
4.3 Fonksiyonên Taybet
- Super Cooling (Super Cool): Activates rapid cooling in the refrigerator compartment. Ideal for quickly chilling large quantities of fresh food. Deactivates automatically after approximately 6 hours.
- Super Freezing (Super Freeze): Activates rapid freezing in the freezer compartment. Use this function when adding a large amount of fresh food to the freezer. Deactivates automatically once the food is frozen.
- VitaFresh Plus: These specialized drawers maintain optimal humidity and temperature levels for specific food types.
- VitaFresh Plus 0°C Drawers: Designed for fish and meat, keeping them fresh up to twice as long.
- VitaFresh Plus Humidity Control Drawer: Ideal for fruits and vegetables, allowing you to adjust humidity levels to suit the contents.
- Pergala MultiAirflow: This system circulates air evenly throughout the refrigerator, ensuring consistent temperatures and reducing temperature fluctuations.
- VarioZone: The freezer shelves are removable, allowing you to create larger storage spaces for bulky items.
5. Maintenance
5.1 Paqijkirin
- Beriya paqijkirinê her gav amûrê ji pêvekê derxin.
- Rûyên hundir û derve bi qumaşek nerm û çareseriyek deterjanê ya nerm paqij bikin. Ji paqijker an çareserkerên aşın dûr bisekinin.
- Ji bo ku derî bi rêkûpêk girtî be, mohrên derî bi rêkûpêk paqij bikin.
- Clean the condenser coils at the back of the appliance (if accessible) annually to maintain efficiency.
5.2 No System Frost
This appliance features a No Frost system, which automatically prevents ice build-up in both the refrigerator and freezer compartments. Therefore, manual defrosting is not required.
6. Destpêkirin
Berî ku hûn bi karûbarê xerîdar re têkilî daynin, ji kerema xwe li ser pirsgirêkên hevpar ên jêrîn û çareseriyên wan ên potansiyel binêrin:
| Pirsegirêk | Sedema gengaz | Çare |
|---|---|---|
| Amûr sar nabe | ceryan tune ye; germahî pir zêde ye; derî bi rêkûpêk nehatiye girtin. | Check power plug and circuit breaker; adjust temperature setting; ensure door is fully closed. |
| Dengê zêde | Appliance not level; items inside vibrating; fan obstruction. | Adjust leveling feet; rearrange items; check for obstructions around the fan. |
| Avê li erdê | Drain hole blocked; drip tray overflowing. | Qulika valakirinê paqij bike; heke hebe, tepsiya dilopê kontrol bike û vala bike. |
| Food not freezing | Freezer temperature set too high; too much food added at once. | Lower freezer temperature; activate Super Freezing function before adding large quantities. |
Eger piştî van çareseriyan pirsgirêk berdewam bike, ji kerema xwe bi xizmeta xerîdar re têkilî daynin.
7. Specifications
| Taybetî | Hûrî |
|---|---|
| Nîşan | Bosch |
| Cins | KGN49LB30U |
| Veavakirin | Freestanding Bottom Freezer |
| Kapasîteya tevahî | 435 Litre |
| Refrigerator Kapasîteya Net | 330 Litre |
| Kapasîteya Net a Sarincokê | 105 Litre |
| Pîvan (H x W x D) | Approx. 203 cm x 70 cm x 67 cm |
| Reng | Reş |
| Door Material | Cam |
| Pergala Veşartinê | Otomatîk (Bê Qeşa) |
| Taybetmendiyên Taybet | VitaFresh Plus, MultiAirflow, VarioZone |
| Refrigerant | R-600A |
| Welatê Origin | Tirkiye |
| Accessories Tevlî | 2 x Cold accumulators, 3 x Egg trays, 1 x Ice cube tray with lid, 1 x Bottle holder in door shelf |
8. Garantî û Piştgirî
8.1 Agahî Garantî
This Bosch KGN49LB30U refrigerator comes with a Garantiya 5-salî from the date of purchase. This warranty covers manufacturing defects and material faults under normal domestic use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, misuse, neglect, or unauthorized repairs.
8.2 Piştgiriya Mişterî
For technical assistance, service requests, or to inquire about spare parts, please contact Bosch customer service in your region. You can usually find contact details on the official Bosch webli malperê an jî di belgeyên ku bi amûrê we re hatine peyda kirin de.
