Pêşkêş
This manual provides essential instructions for the safe and efficient use of your itel it2160 dual SIM mobile phone. Please read this guide thoroughly before operating the device and retain it for future reference.
Naveroka pakêtê
Piştrast bike ku hemî tişt di pakêta hilberê te de hene:
- itel it2160 Mobile Phone
- Pîl
- Charger
- Manual Bikarhêner (ev belge)
Device Layout
Familiarize yourself with the key components of your itel it2160 phone.
Wêne: Pêşde view of the itel it2160 mobile phone, showing the display, keypad, and navigation buttons.

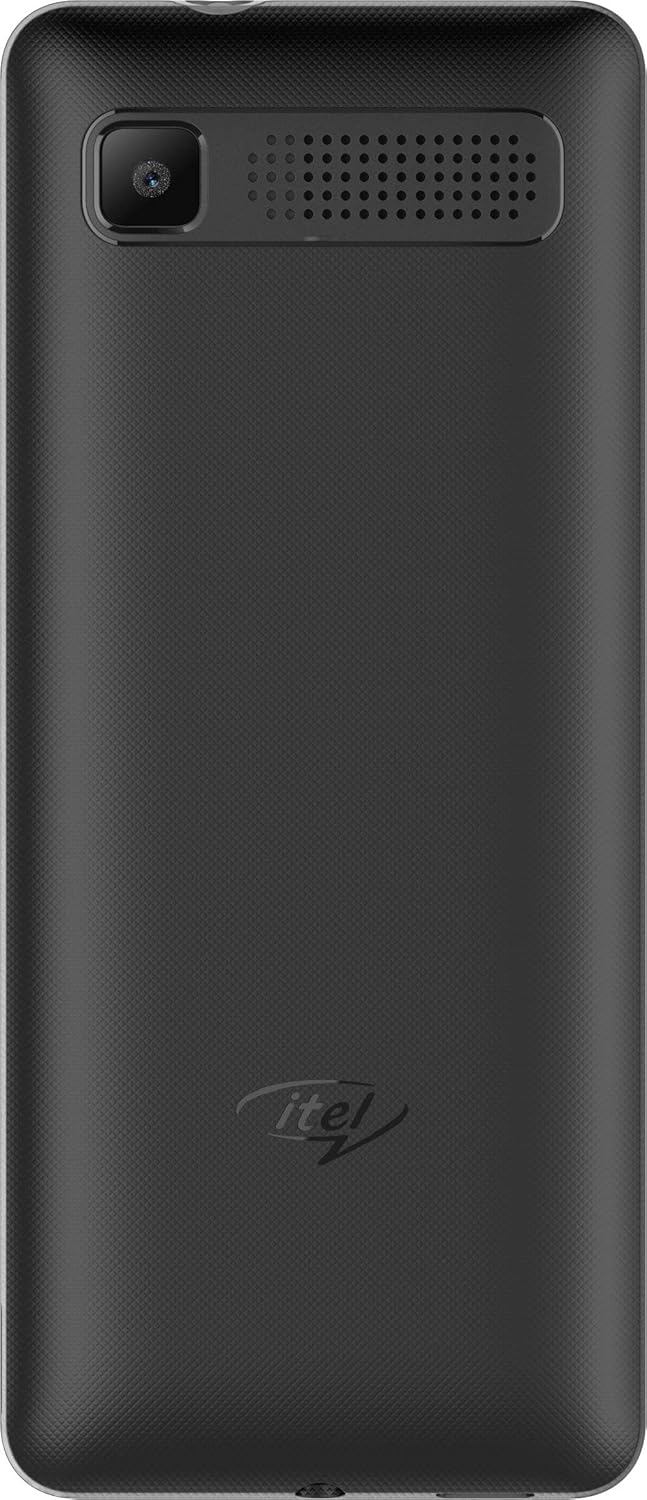

Wêne: Mezinkirin view of the itel it2160 mobile phone, showing the camera and speaker grille.
- Pêşkêşî: 1.77-inch screen for viewing agahî.
- Keypad: Alphanumeric keys for dialing and text input.
- Bişkojkên Navîgasyonê: Ji bo navîgasyon û hilbijartinê di menuyê de.
- Bişkojkên Gazîkirin/Bidawîkirina Bangê: To initiate and terminate calls.
- Kamera paşîn: Located on the back for capturing photos.
- Gotevan: Ji bo derketina deng.
Damezirandin
1. Installing SIM Cards and Battery
- Qapaxa pişta telefonê bi nermî ji qulikê veke û jê bike.
- Insert your SIM card(s) into the designated SIM slots. Ensure the gold contacts face downwards. This phone supports dual SIM cards.
- Ger pêkan be, ji bo hilanîna berfirehtir, qerta microSD têxin nav slota qerta bîranînê.
- Pîlê têxe nav xwe, têkiliyan bi awayekî rast rêz bike.
- Qapaxa piştê vegerînin heta ku bi ewlehî li cihê xwe bicîh bibe.
2. Barkirina Pîl
- Şarjêrê bi porta şarjê ya li ser telefona xwe ve girêdin.
- Şargerê têxin hêleke elektrîkê.
- Allow the phone to charge completely before first use. The battery indicator on the screen will show charging status.
3. Hêzdarkirina / Off
- Hêzdarkirin: Press and hold the Power/End key until the screen lights up.
- Ji bo Veqetandinê: Press and hold the Power/End key until the power-off options appear, then select "Power off".
Telîmatên Operating
1. Çêkirin û wergirtina bangan
- Ji bo Bangek: Enter the phone number using the keypad and press the Call key. If using dual SIM, select the desired SIM for the call.
- Ji bo wergirtina telefonê: Dema ku telefon lê dixe, bişkoja Bang bike bikirtînin.
- Ji bo Dawîkirina Bangek: Bişkojka Dawiyê bitikîne.
2. Şandin û wergirtina SMSê
- To Send SMS: Go to "Menu" > "Messages" > "Write message". Enter your message and the recipient's number, then send.
- To Read SMS: New messages will be indicated on the screen. Go to "Menu" > "Messages" > "Inbox" to view.
3. Bikaranîna Kamera
- Navigate to "Menu" > "Camera".
- Wêneya xwe bi karanîna dîmenderê çarçove bike.
- Press the center navigation key or a designated camera key to capture the image.
4. Radyoya FM
- Connect headphones to the phone's audio jack (headphones act as an antenna).
- Go to "Menu" > "FM Radio".
- Bişkokên navîgasyonê bikar bînin da ku hûn stasyonan bigerin an jî bi destan mîheng bikin.
Lênerrînî
- Lênêrîna Pîl:
- Ji germên zêde dûr bixin.
- Do not overcharge or completely drain the battery frequently.
- Use only the original charger provided with the device.
- Paqijî:
- Wipe the phone with a soft, dry cloth.
- Avoid using liquid cleaners or aerosols.
- Embarkirinî:
- Telefonê li cîhekî sar, hişk û dûr ji tîrêjên rojê yên rasterast hilînin.
- Ji zarok û heywanên heywanan dûr bimînin.
Çareserkirina pirsgirêkan
| Pirsegirêk | Çareseriya gengaz |
|---|---|
| Telefon vêna nabe. | Ensure the battery is correctly inserted and charged. Connect the charger and try again. |
| No sînyala torê. | Check if SIM cards are properly inserted. Move to an area with better network coverage. Contact your service provider. |
| Nikare bang bike an jî werbigire. | Verify network signal. Check if call barring is active. Ensure sufficient balance on your SIM card. |
| Pîl zû diqelişe. | Reduce screen brightness. Close unused applications. Limit background activities. |
Specifications
| Taybetî | Hûrî |
|---|---|
| Navê Model | IT2160 |
| Mezinahiya Nîşandanê | 1.77 inches |
| Resolution Display | 128 x 160 pixel |
| Kamera paşîn | 1.3 Megapixel |
| Kamera pêş | Netû |
| Sîstema RAM | 4 Megabytes |
| Storage Capacity | 256 Gigabytes (Expandable) |
| Operating System | Proprietary Feature Phone OS |
| Modela CPU | Basic Feature Phone Processor |
| Leza CPU | 260 MHz |
| Mezinahiya Hilberê | 11.2 x 4.8 x 1.43 cm; 80 gram |
Agahî Garantî
Your itel it2160 mobile phone comes with a warranty. Please review mercên jêrîn:
Wêne: Warranty details for itel mobile products, indicating 100 days replacement and 12 months warranty.
- Product must comply with all warranty conditions as mentioned in the warranty manual/card.
- Product with hardware failure is covered under replacement.
- Product failure which can be solved by software is not covered under replacement.
- A SWAP unit will be the same or a similar spec model.
- Beyond 100 days, the normal repair warranty terms would be applicable.
- The warranty period is typically 12 months from the date of purchase.
For detailed warranty terms and conditions, refer to the warranty card included in your package or contact itel customer support.
Alîkarî
For further assistance, technical support, or service inquiries, please contact itel customer service. Contact details can typically be found on the official itel webmalper an li ser karta garantiya we.
Çavkaniyên Serhêl: You may find additional support and FAQs on the official itel brand store.
