Rêbernameya Bikarhêner a Mîkrofona Kondensator a Weşana Tûj a Super-Cardioid a Saramonic SR-TM7

Pêşkêş

The Saramonic SR-TM7 is a professional super-cardioid broadcast shotgun condenser microphone designed to deliver clear, broadcast-quality audio. It is suitable for use with video cameras, audio recorders, and DSLR/mirrorless cameras equipped with XLR adapters. Its long-shotgun design is optimized for capturing sound from a distance. This manual provides detailed instructions for the proper use and maintenance of your SR-TM7 microphone.

Agahiyên Ewlekariyê

• Do not expose the microphone to water or excessive humidity.
• Avoid dropping or subjecting the microphone to severe impacts.
• Do not attempt to disassemble or modify the microphone.
• Mîkrofonê ji qadên magnetîkî yên bihêz dûr bigirin.
• Use only the specified charging cable for the built-in battery.

Naveroka pakêtê

Piştrast bike ku hemî tişt di pakêta te de hene:

• Saramonic SR-TM7 Microphone
• Cable Micro USB
• Mic Clip with Camera Shoe Mount
• Foam Windscreen
• Kabloya XLR

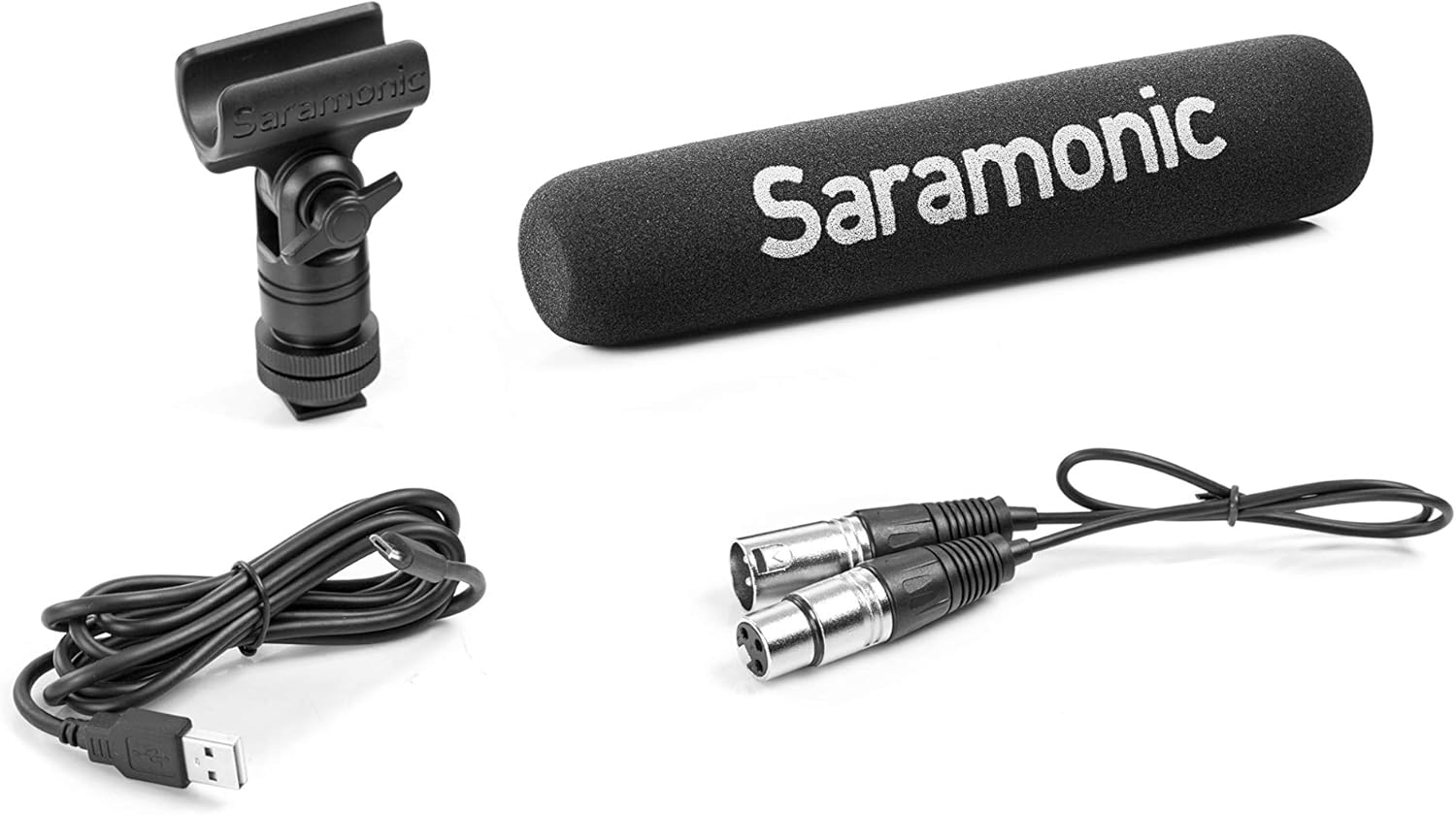

Image: Saramonic SR-TM7 microphone with its accessories, including an XLR cable, a Micro USB charging cable, a mic clip, and a foam windscreen.

Product Overview

The SR-TM7 features several controls and indicators for optimal audio capture.

Image: Saramonic SR-TM7 microphone with foam windscreen. The image highlights the control panel with buttons for high-pass filter, PAD, high frequency boost, and power.

1. Kapsula mîkrofonê: The primary sound capture component.
2. Digital High-Pass Filter (75Hz/150Hz): Reduces low-frequency noise.
3. -10dB PAD Switch: Attenuates input signal for loud sound sources.
4. +6dB High Frequency Boost Switch: Enhances clarity and sharpness of audio.
5. ON/OFF Power Button: Mîkrofonê çalak dike û neçalak dike.
6. Derketina XLR: Standard 3-pin XLR connector for audio output.
7. Porta Barkirina Micro-USB: Ji bo ji nû ve şarjkirina bataryaya navxweyî.

Damezirandin

1. Attach Mic Clip: Secure the SR-TM7 microphone into the provided mic clip. The mic clip can then be mounted onto a camera shoe mount or other compatible stand.
2. Kabloya XLR girêde: Connect one end of the supplied XLR cable to the microphone's XLR output and the other end to your camera, audio recorder, or XLR adapter.
3. Apply Foam Windscreen: For indoor use or light wind conditions, slide the foam windscreen over the microphone capsule to reduce plosives and minor wind noise. For outdoor use in windy conditions, a high-wind furry windscreen (e.g., TM-WS7, sold separately) is recommended.
4. Hêzdarkirin: Press the ON/OFF power button to activate the microphone. The button will illuminate to indicate power status and battery level.

Image: The Saramonic SR-TM7 microphone integrated into a camera setup, demonstrating its typical use for video production.

Bi Kar Tînekirina Mîkrofonê

Powering the Microphone

The SR-TM7 can be powered by its internal rechargeable lithium battery or by 48V phantom power from your connected device. The power button's illumination indicates the power source and battery life.

• Pîlê navxweyî: Provides up to 150 hours of operation.
• Power Phantom: If connected to a device supplying 48V phantom power, the microphone will automatically draw power from it.

Bişkojkên Kontrolê bikar tînin

The SR-TM7 features five illuminated buttons for easy adjustment, even in low-light conditions. The microphone digitally controls the on-board filters and saves your settings when powered off.

• -10dB PAD: Press this button to reduce the input sensitivity by 10dB. This is useful when recording very loud sound sources to prevent distortion.
• +6dB High Frequency Boost: Activate this feature to enhance the sharpness and clarity of the audio, particularly useful for dialogue.
• Low-Cut Filters (75Hz and 150Hz): Two separate buttons allow you to engage a low-cut filter at either 75Hz or 150Hz. These filters help to eliminate distracting low-frequency noises such as rumble from vehicles, air conditioners, or footsteps, making dialogue more intelligible.

Battery and Charging

The SR-TM7 is equipped with a built-in lithium battery. The Micro-USB charging port is integrated into the XLR connector for convenience.

1. Barkirin: Connect the supplied Micro-USB cable to the charging port on the microphone and to a standard USB power source (e.g., computer USB port, USB wall adapter).
2. Nîşana barkirinê: The power button's color will change to indicate charging status and battery life. Refer to the microphone's specific LED indicators for detailed status.
3. Jiyana Pîlê: A full charge provides approximately 150 hours of continuous operation.

Lênerrînî

• Paqijî: Ji bo paqijkirina laşê mîkrofonê qumaşek nerm û hişk bikar bînin. Paqijkerên şilemenî an çareserkeran bikar neynin.
• Embarkirinî: When not in use, store the microphone in a dry, dust-free environment, preferably in its original packaging or a protective case.
• Lênêrîna Pîl: For long-term storage, ensure the battery is partially charged (around 50%) to prolong its lifespan. Avoid fully discharging the battery for extended periods.

Çareserkirina pirsgirêkan

Specifications

• Faktora Forma Mîkrofonê: Shotgun
• Nimûneya Polar: Super-Cardioid
• Bersiva Frequency: 20 Hz - 20 kHz
• Rêjeya îşaret-bi-deng: 80 dB
• Hestiyariya Deng: 10 Desîbel
• Çavkaniya hêzê: Built-in Lithium Ion Battery / 48V Phantom Power
• Jiyana Pîlê: Approximately 150 hours (internal battery)
• Tîpa girêdanê: XLR, Micro USB (for charging)
• Pîvan (L x W x H): 17.72 x 3.35 x 6.89 înç (Dîmenên Hilberê)
• Giraniya Babetê: 8.1 ons (0.23 Kilogram)
• Mal: Durable Metal Construction (body), Foam (windscreen)
• Pêkhateyên Tevlî: Micro USB cable, Mic Clip, Foam windshield, XLR cable

Garantî û Piştgirî

For warranty information and technical support, please refer to the official Saramonic webcih an jî bi belavkarê xwe yê herêmî re têkilî daynin. Ji bo îdiayên garantiyê delîla kirînê biparêzin.

Saramonic Official Webmalper: www.saramonic.com
