BLACK+DECKER FSS1600 1600-Watt Handheld Steamer User Manual

1. Destpêk

Thank you for choosing the BLACK+DECKER FSS1600 1600-Watt Handheld Steamer. This versatile appliance is designed for deep cleaning and sanitizing various surfaces using the power of steam, eliminating 99.9% of bacteria and germs without the need for harsh chemicals. Please read this manual carefully before first use to ensure safe and optimal performance.

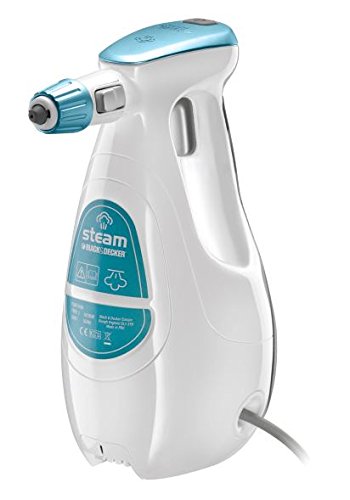

Figure 1: BLACK+DECKER FSS1600 Handheld Steamer main unit. This image shows the compact, white and blue handheld steamer with its ergonomic handle and water tank.

2. Agahdariya Ewlekariya Girîng

Dema ku hûn amûrên elektrîkê bikar tînin, ji bo kêmkirina xetera agir, şoka elektrîkê û birîndarbûna kesane, her gav tedbîrên ewlehiyê yên bingehîn bişopînin. Vê rêbernameyê ji bo referansa pêşerojê biparêzin.

• Amûrê nexin nav av an şilekên din.
• Do not leave the steamer unattended while plugged in or operating.
• Ji zarok û heywanên heywanan dûr bimînin.
• Use only tap water. Do not add cleaning solutions, perfumes, or other chemicals to the water tank.
• Steam is hot. Avoid direct contact with skin or eyes. Direct steam only towards the surface being cleaned.
• Ensure the appliance is unplugged before filling, emptying, or cleaning.
• Amûrê bi têl an fîşa xerabûyî nexebitînin.
• Ev amûr tenê ji bo karanîna malê ye.

3. Pêkhateyên Berhemê û Naveroka Pakêtê

Your BLACK+DECKER FSS1600 Handheld Steamer package includes the following items:

• BLACK+DECKER FSS1600 Handheld Steamer Unit
• 10 Professional Cleaning Accessories (e.g., brushes, nozzles, squeegee, microfibre pads)
• Karta Garantiyê
• Destûra Rêvekirinê (ev belge)

Familiarize yourself with the main parts of your steamer:

• Tank avê: Removable, easy-to-fill tank with 350ml capacity.
• Water Filtering System: In-built system to protect against limescale.
• Ronahiya nîşana hêzê: Changes from red to blue when ready for use.
• Bişkojk/Tetikê Buharê: To release steam.
• Accessory Connection Point: For attaching various cleaning tools.

4. Sazkirin û Bikaranîna Yekem

1. Ji berhevxistin: Hemû pêkhateyan bi baldarî ji pakêtê derxînin. Pakêtê ji bo hilanîn an veguhastina pêşerojê biparêzin.
2. Tank Avê tije bikin:
   • Piştrast bike ku makîneya buharê ji prizê veqetandî ye.
   • Depoya avê ji yekîneya sereke derxînin.
   • Fill the tank with clean tap water up to the maximum fill line. Do not overfill.
   • Securely replace the water tank onto the main unit.
3. Pêvekirina Pêvekê: Select the appropriate cleaning accessory for your task (e.g., brush for grout, nozzle for tight spaces) and securely attach it to the accessory connection point on the steamer.
4. Hêzdarkirin: Plug the steamer into a suitable electrical outlet (210-250 volts). The power indicator light will illuminate red.
5. Germ kirin: Wait approximately 15 seconds for the steamer to heat up. The power indicator light will change from red to blue, indicating it is ready for use.

5. Telîmatên Operating

Once the steamer is ready (blue indicator light), you can begin cleaning.

1. Release Steam: Press and hold the steam trigger/button to release a continuous flow of steam. Release the button to stop steaming.
2. Rûyên Paqijkirinê:
   • Direct the steam and attached accessory towards the surface you wish to clean.
   • Move the steamer slowly over the surface to allow the steam to penetrate and loosen dirt.
   • Use the appropriate accessory for specific tasks, such as cleaning cooker hobs, BBQ grills, shower screens, tiles, bathtubs, sinks, and taps.
3. Extra Steam on Demand: For stubborn dirt and grime, activate the "Extra Steam on Demand" feature (if available on your model) to release 50% more steam. Refer to your specific model's controls for this function.
4. Digital AutoSelect Technology (if applicable): If your model includes Digital AutoSelect Technology, select the correct floor type (e.g., wood, laminate, tile) using the designated control. The steamer will automatically release the optimum amount of steam for that surface, ensuring floors dry quickly. Note: While this product is primarily a handheld steamer, some models may share features with steam mops.
5. Self-Standing Feature: The steamer can stand upright independently. When locked in the upright position, steam will automatically shut off for safety and convenience.
6. Finishing Cleaning: When finished, release the steam trigger, unplug the appliance, and allow it to cool completely before emptying the water tank and storing.

6. Maintenance û Care

Parastina birêkûpêk temenê dirêj û performansa çêtirîn a makîneya weya buharê misoger dike.

• Depoya avê ya vala: After each use, ensure the steamer is unplugged and cooled. Remove the water tank and empty any remaining water.
• Amûrên Paqij: Wash microfibre pads (if included) with mild detergent. They are designed to last over 100 wash cycles. Clean other accessories with water and mild soap as needed.
• Descaling (Water Filtering System): Your steamer features an in-built water filtering system to protect against limescale. While this reduces the need for frequent descaling, if you notice reduced steam output or mineral buildup, consult the BLACK+DECKER support for specific descaling instructions. Do not use chemical descalers not approved for this appliance.
• Paqijkirina Derve: Derveyê vaporê bi reklamê paqij bikeamp çît. Paqijkerên abrasive an solvanan bikar neynin.
• Embarkirinî: Store the cooled and emptied steamer and its accessories in a dry, safe place, away from direct sunlight and extreme temperatures.

7. Destpêkirin

If you encounter issues with your steamer, refer to the following table before contacting customer support.

8. Specifications Teknîkî

• Cins: FSS1600
• Nîşan: REŞ+DECKER
• Erk: 1600 Watt
• Operating Voltage: 210-250 Volt
• Kapasîteya Tank Avê: 350 ml
• Dema germkirinê: Nêzîkî 15 çirke
• Giraniya Babetê: 2.84 kg (nêzîkî)
• Reng: Spî û Şîn
• Taybetmendiyên Taybet: In-built Water Filtering System, Extra Steam on Demand, Digital AutoSelect Technology (on compatible models)

9. Garantî û Piştgiriya Mişterî

Your BLACK+DECKER FSS1600 Handheld Steamer comes with a Garantiya 1 salî li ser hilberê ji roja kirînê ve. Ji kerema xwe fatûreya kirîna xwe wekî delîla kirînê ji bo îdîayên garantiyê biparêzin.

For warranty service, technical assistance, or to order replacement parts, please contact BLACK+DECKER customer support. Refer to the warranty card included in your package for specific contact details and terms and conditions.

Piştgiriya Serhêl: Serdana BLACK+DECKER-a fermî bikin website for product registration, FAQs, and support resources. www.blackanddecker.com
