Audizio Laredo Bluetooth Turntable Instruction Manual

1. Destpêk

Spas ji bo kirînêasing the Audizio Laredo Bluetooth Turntable. This manual provides essential information for the safe and correct operation of your device. Please read it thoroughly before use and keep it for future reference.

Taybetmendiyên sereke:

• Integrated HiFi speakers with 160W total power output.
• Bidirectional Bluetooth for wireless audio streaming (in and out).
• High-quality Audio Technica cartridge for precise playback.
• Supports 7, 10, and 12-inch vinyl records at 33 and 45 RPM.
• Adjustable counterweight on the aluminum tonearm.
• RCA Line Out for external amplifier / axaftvan.
• AUX Input for connecting external audio sources.
• Elegant bamboo finish.

Di qutîkê de çi ye:

• Audizio Laredo Turntable Unit
• Manual Instruction
• Power Adapter
• 45 RPM Adapter for singles

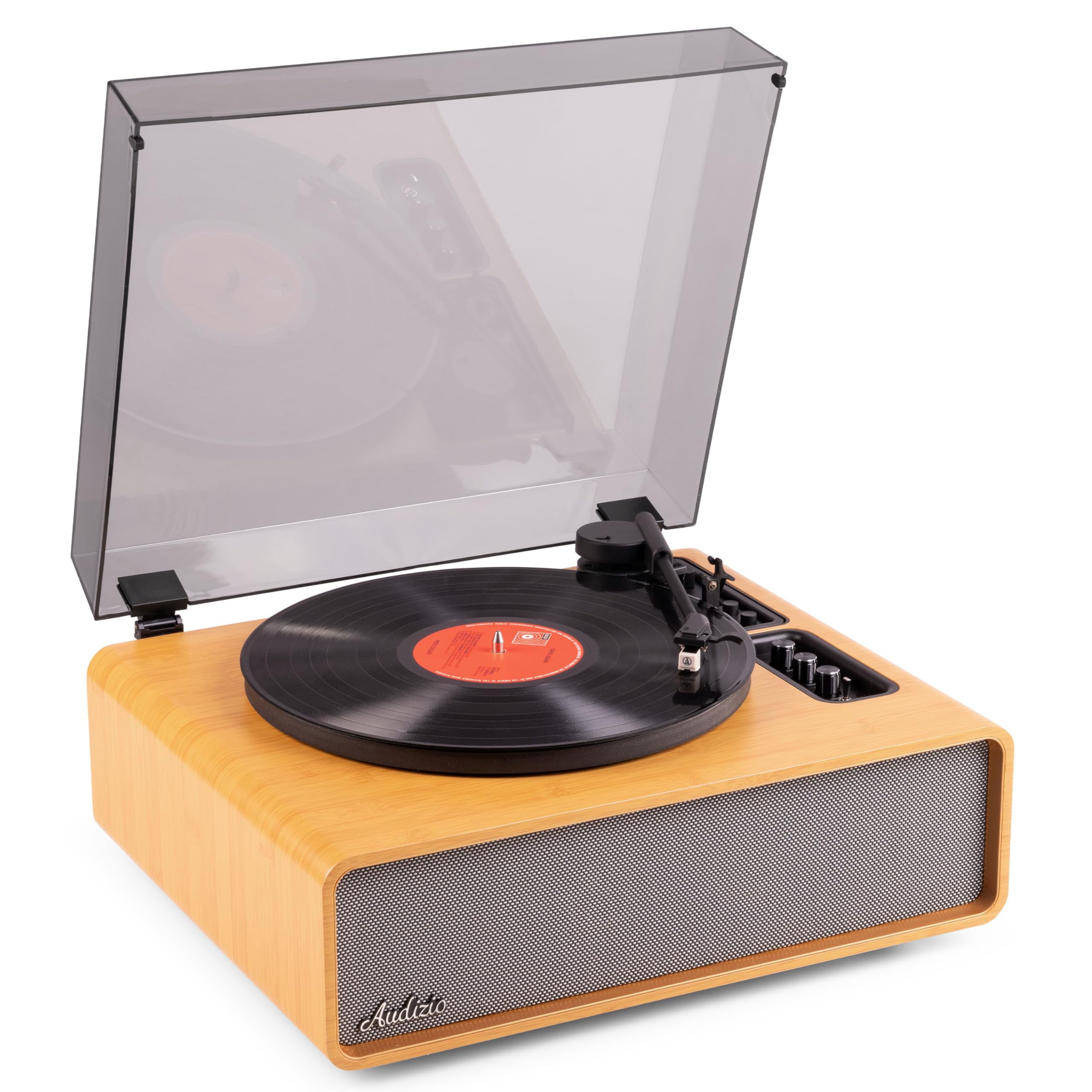

Figure 1.1: Audizio Laredo Turntable, overall view.

2. Telîmatên Ewlekariyê

Please read and follow these safety instructions carefully to prevent damage to the unit and ensure your safety.

• Ji bo rêgirtina li agir an şoka elektrîkê, cîhazê li ber baran an şilbûnê nehêlin.
• C venekinasing. Di hundir de ti parçeyên ku ji hêla bikarhêner ve werin tamîrkirin nînin. Hemû tamîrkirin ji karmendên pispor re bişînin.
• Place the unit on a stable, level surface to prevent it from falling.
• Amûrê ji tîrêjên rojê yên rasterast, çavkaniyên germê û toza zêde dûr bigirin.
• Li dora yekîneyê hewakirina guncaw peyda bikin. Deriyên hewakirinê negirin.
• Tenê adapterê hêza peydakirî bikar bînin.
• Yekîneyê di dema bahozên birûskê de an dema ku ji bo demên dirêj nayên bikar anîn vekin.

3. Hilbera Serîview

Familiarize yourself with the components and controls of your Audizio Laredo turntable.

Pêkhateyên Sereke:

• Platter: Supports the vinyl record.
• Tonearm: Kartrîc û stilusê digire.
• Cartridge & Stylus: Reads the grooves of the record. (Audio Technica ATN-3600)
• Qada tozê: Tabaq û armê destan ji tozê diparêze.
• Axaftvanên yekbûyî: For direct audio playback.
• Panela Kontrolê: For power, volume, tone, and mode selection.
• Têkiliyên paşîn: RCA Line Out, AUX In, Power Input.

Wêne 3.1: Ser view of the turntable with key components visible.

Figure 3.2: Control Panel for volume, bass, and treble adjustments.

Figure 3.3: Audio Technica ATN-3600 Cartridge and Stylus.

Figure 3.4: Tonearm base with speed and auto-stop controls.

Figure 3.5: Rear connection panel.

4. Sazkirin

4.1 Vekirin

• Bi baldarî pikonê ji pakêta wê derxînin.
• Remove all protective materials, including the stylus guard.
• Ji bo veguhestin an hilanîna pêşerojê pakêtê biparêzin.

4.2 Cihkirin

• Place the turntable on a stable, level surface to prevent vibrations and ensure proper playback.
• Avoid placing the unit near strong magnetic fields, heat sources, or areas with high humidity.

4.3 Sazkirina Qapaxa Tozê

• Align the hinges of the dust cover with the slots on the back of the turntable.
• Gently push down until the cover is securely in place.
• The dust cover can be removed for playback if desired.

Figure 4.1: Turntable with dust cover.

4.4 Girêdana Hêzê

• Connect the power adapter to the DC IN port on the rear of the turntable.
• Plug the adapter into a suitable wall outlet (220V).

4.5 Sazkirina Tonearm û Kartuşê

• The Audio Technica cartridge is pre-installed.
• The tonearm features an adjustable counterweight. Refer to the detailed instructions in the included manual for precise counterweight adjustment to optimize tracking force.

5. Telîmatên Operating

5.1 Lêxistina Plakekê

• Place a vinyl record on the platter. If playing a 7-inch single, use the included 45 RPM adapter.
• Select the appropriate speed (33 or 45 RPM) using the speed selector switch near the tonearm base.
• Bi karanîna levera nîşankirinê, tonearm bi nermî bilind bikin.
• Position the tonearm over the desired track of the record.
• Bi karanîna levera nîşankirinê hêdî hêdî milê dengî kêm bikin. Stylus dê bi plakê re bikeve têkiliyê û lêxistin dê dest pê bike.
• Di dawiya tomarê de, fonksiyona rawestandina otomatîk dê zivirîna plakayê bixweber rawestîne. Tonearm hildin û vegerînin rewşa xwe ya aram.

Figure 5.1: Playing a vinyl record.

5.2 Bluetooth Operation (Bidirectional)

The Laredo turntable supports both Bluetooth input (receiving audio from a device) and Bluetooth output (sending audio to a Bluetooth speaker/headphones).

Bluetooth Input (BT IN):

• Press the MODE/POWER button to select Bluetooth mode. The LED indicator will flash.
• On your smartphone or tablet, enable Bluetooth and search for 'Audizio Laredo'.
• Select the turntable to pair. Once connected, the LED will glow solid.
• You can now stream audio from your device to the turntable's integrated speakers.

Bluetooth Output (BT OUT):

• Piştrast bike ku guhdarok an axaftvana Bluetooth-a te di moda cotkirinê de ne.
• Set the BT OUT switch (located near the tonearm base) to 'ON'.
• The turntable will automatically search for and connect to the nearest Bluetooth audio device.
• Once connected, the audio from your vinyl record will be transmitted to your Bluetooth device.

Figure 5.2: Bidirectional Bluetooth functionality.

5.3 Ketina AUX

• Connect an external audio device (e.g., MP3 player, CD player) to the AUX IN port on the rear of the turntable using a 3.5mm audio cable.
• Press the MODE/POWER button to select AUX mode.
• Audio from the external device will play through the turntable's speakers.

5.4 RCA Line Out

• Ji bo girêdana turntable bi guhêrbarek derveyî ve amplifier or powered speakers, use an RCA cable (not included) to connect the LINE OUT ports on the rear of the turntable to the corresponding input on your audio system.
• Ensure the 'Speaker ON/OFF' switch on the rear is set to 'OFF' if you only want sound from external speakers.

5.5 Kontrola Deng û Dengê

• Use the VOLUME knob on the control panel to adjust the overall playback volume.
• Adjust the BASS and TREBLE knobs to fine-tune the audio output to your preference.

6. Maintenance

6.1 Paqijkirina Yekîneyê

• Wipe the dust cover and cabinet with a soft, dry cloth.
• Paqijkerên aşınker, mûm, an çareserkeran bikar neynin.
• For the platter, use a slightly damp qumaşê bikin û bi baldarî hişk bikin.

6.2 Stylus Care and Replacement

• The stylus is a delicate component. Handle it with care.
• Clean the stylus regularly using a soft brush designed for stylus cleaning, brushing from back to front.
• A stylus typically lasts for approximately 300-500 hours of playback. If you notice a decrease in sound quality or increased skipping, it may be time to replace the stylus.
• Replacement styli (e.g., Audio Technica ATN-3600L or compatible) can be purchased from authorized dealers. Refer to the detailed instructions provided with the replacement stylus for installation.

7. Destpêkirin

If you encounter issues with your turntable, please consult the following table before contacting support.

8. Specifications

Technical specifications for the Audizio Laredo Turntable.

9. Garantî û Piştgirî

9.1 Agahî Garantî

This Audizio Laredo Turntable comes with a Garantiya 2-salî from the date of purchase. This warranty covers manufacturing defects and faults under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear (e.g., stylus wear).

Ji kerema xwe ji bo îdîayên garantiyê delîla kirîna xwe biparêzin.

9.2 Piştgiriya Mişterî

If you have any questions, require technical assistance, or need to make a warranty claim, please contact your retailer or visit the official Audizio webmalper ji bo çavkaniyên piştgiriyê û agahdariya têkiliyê.

Official Audizio Webmalper: www.audizio.com
