Nilight Ignition Coil Pack UF624 Instruction Manual

1. Destpêk

This manual provides essential information for the installation, operation, and maintenance of your Nilight Ignition Coil Pack (Model 10250W, OE# UF624, 5C1722). Please read these instructions carefully before proceeding with installation to ensure proper function and safety.

The ignition coil is a critical component in your vehicle's ignition system, responsible for transforming the battery's low voltage into the thousands of volts required to create an electric spark in the spark plugs. This spark ignites the fuel-air mixture in the engine's cylinders.

2. Taybetmendiyên Hilberê

Wêne: Serview of Nilight Ignition Coil Pack features, highlighting superior vibration resistance, easy installation, longer lifespan, and high temperature resistance.

• Superior Vibration Resistance: Engineered to withstand engine vibrations for consistent performance.
• Sazkirina hêsan: Designed for direct OEM replacement, simplifying the installation process.
• Jiyana Dirêjtir: Constructed with high-quality copper wire from Germany and durable wire coating for extended durability.
• Berxwedana Germahiya Bilind: Silicone rubber boots can endure temperatures from -40°F to 302°F, ensuring excellent insulation and reliability in various operating conditions.
• Reduced Carbon Deposits: Optimized design contributes to more complete combustion, leading to significantly fewer carbon deposits over time.

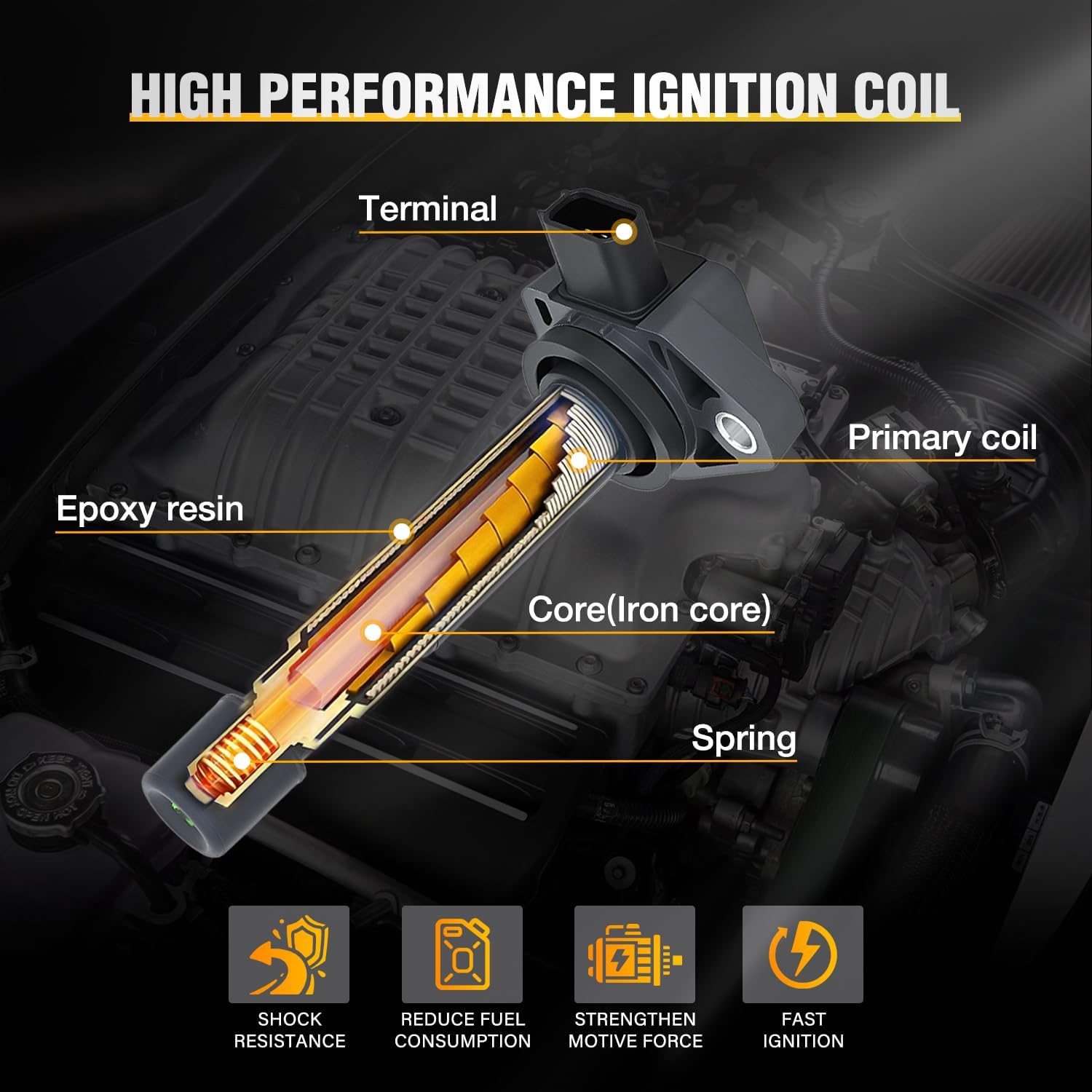

Image: Diagram illustrating the internal components of the ignition coil, including the terminal, primary coil, epoxy resin, iron core, and spring.

Image: Visual comparison demonstrating the reduction in carbon deposits on an engine valve after using Nilight ignition coils, indicating improved combustion efficiency.

3. Compatibility

This Nilight Ignition Coil Pack (UF624, 5C1722) is compatible with various Honda and Acura models equipped with 3.5L or 3.7L V6 engines. Please verify your vehicle's year, make, and model, and cross-reference with the Original Equipment (OE) part numbers before purchase.

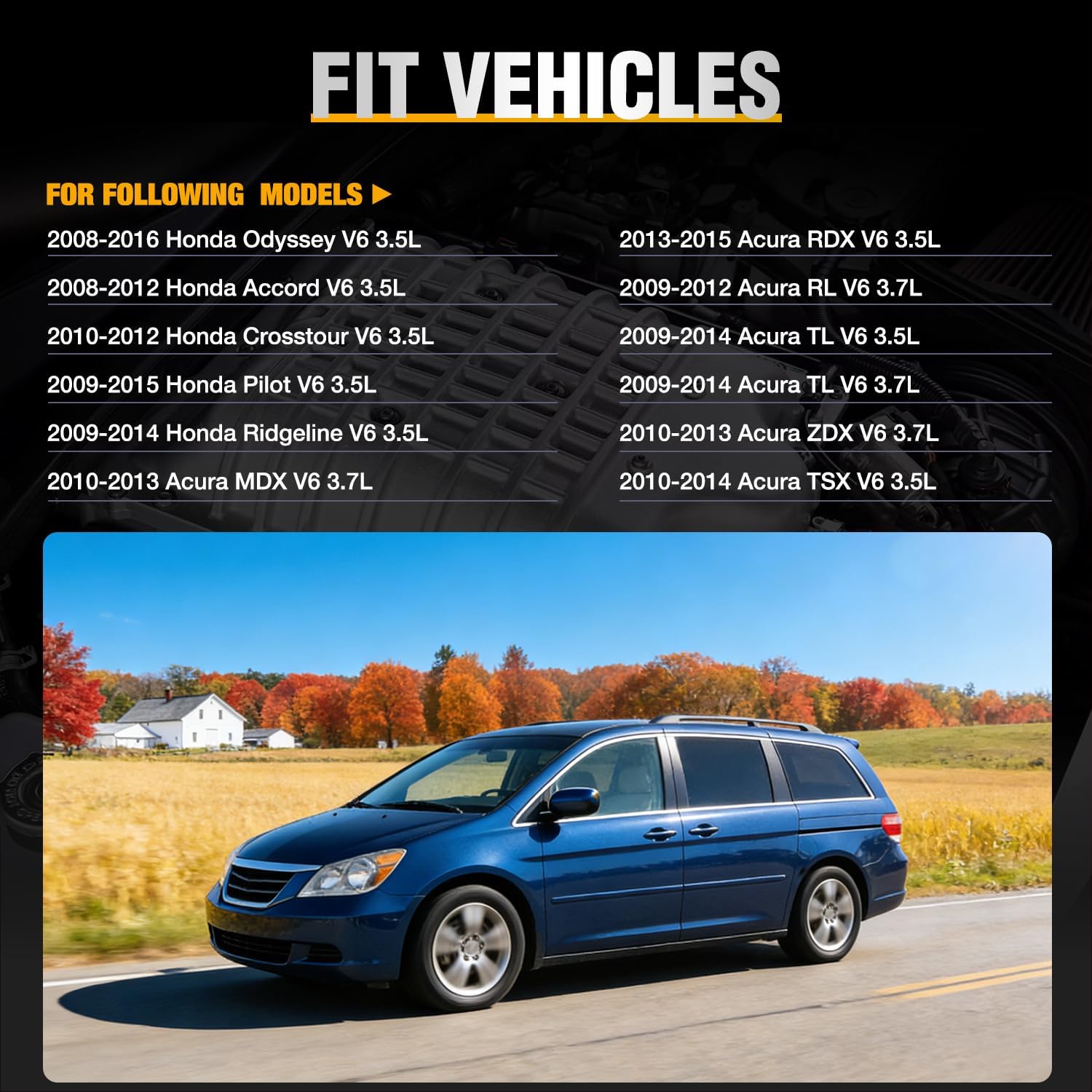

Image: Table detailing compatible vehicle models and years for the ignition coil pack.

Modelên Wesayîta Lihevhatî:

• Honda:
  • Odyssey V6 3.5L: 2008-2016
  • Accord V6 3.5L: 2008-2012
  • Crosstour V6 3.5L: 2010-2012
  • Pilot V6 3.5L: 2009-2015
  • Ridgeline V6 3.5L: 2009-2014
• Acura:
  • MDX V6 3.7L: 2010-2013
  • RDX V6 3.5L: 2013-2015
  • RL V6 3.7L: 2009-2012
  • TL V6 3.5L/3.7L: 2009-2014
  • ZDX V6 3.7L: 2010-2013
  • TSX V6 3.5L: 2010-2014

Jimareyên Beşê Diguherîne:

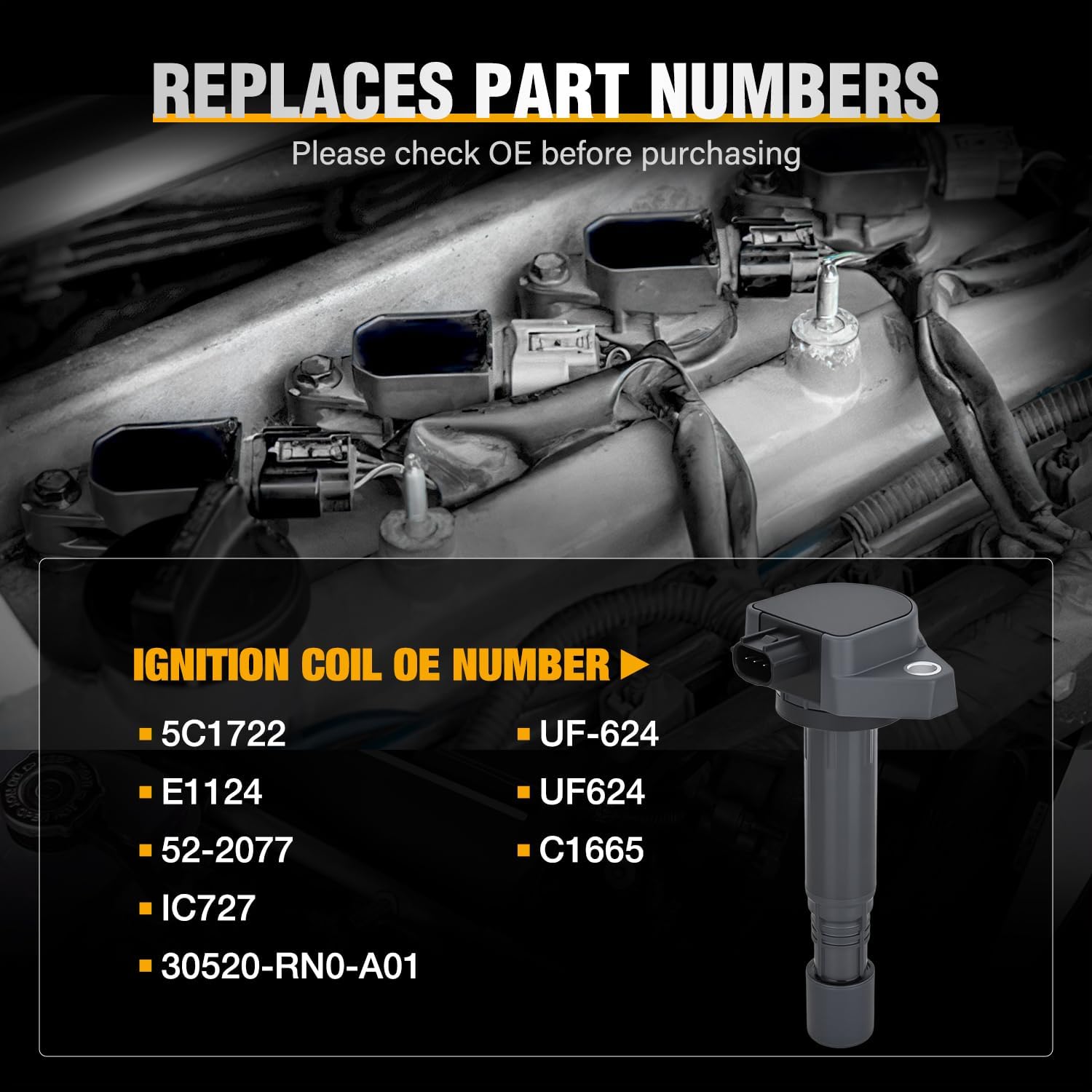

Image: List of Original Equipment (OE) part numbers that this ignition coil pack replaces.

• UF624
• 5C1722
• E1124
• 52-2077
• IC727
• 30520-RN0-A01
• C1665

Note: Always confirm the OE number, ignition coil interface pin quantity, and interface type before purchasing ji bo bicîhbûna rast piştrast bikin.

4. Telîmatên Sazkirinê

Proper installation is crucial for the performance and longevity of your new ignition coils. If you are unsure about any step, it is recommended to consult a qualified mechanic.

Tedbîrên Ewlekariyê:

• Always disconnect the negative terminal of your vehicle's battery before starting any work on the ignition system.
• Ensure the engine is cool to the touch before beginning.
• Amûrên parastina kesane yên guncaw, wek lepik û parastina çavan li xwe bikin.
• Avoid touching hot engine components.

Sazkirina gav-bi-gav:

Image: Visual guide outlining the six main steps for replacing an ignition coil.

1. Remove the engine cover: Carefully detach any engine covers to access the ignition coils.
2. Demdirêj: Use a brush or compressed air to remove any dust or debris from around the coil area to prevent contamination.
3. Remove the ignition coil fixing screw: Use an appropriate wrench to unscrew the bolt holding the ignition coil in place.
4. Remove the power plug and take out the ignition coil: Disconnect the electrical connector from the coil and then carefully pull the old ignition coil out of its well.
5. Install the new ignition coil and tighten the screws: Insert the new Nilight ignition coil into the well, ensuring it seats properly. Reinstall and tighten the fixing screw.
6. Connect the power plug and close the top cover: Reconnect the electrical connector to the new coil, ensuring it clicks into place. Finally, replace the engine cover.

After installation, reconnect the negative battery terminal. Start the engine and check for any warning lights or unusual operation.

5. Operasyon

The ignition coil operates automatically as part of your vehicle's engine management system. Once installed, it functions to provide the necessary high voltage to the spark plugs, ensuring efficient combustion. There are no user-adjustable settings for the ignition coil itself.

A properly functioning ignition coil contributes to:

• Smooth engine operation
• Optimal fuel efficiency
• Consistent engine power
• Emîsyonên kêm kirin

6. Maintenance

Ignition coils are generally maintenance-free components. However, regular vehicle maintenance can help prolong their lifespan and ensure optimal performance:

• Regular Spark Plug Replacement: Worn spark plugs can put additional strain on ignition coils, leading to premature failure. Follow your vehicle manufacturer's recommended spark plug replacement intervals.
• Keep Engine Bay Clean: Excessive dirt and debris can lead to overheating or electrical issues. Periodically clean the engine bay, ensuring no moisture enters electrical components.
• Têlê kontrol bikin: During routine checks, inspect the wiring harnesses connected to the ignition coils for any signs of wear, fraying, or damage.
• Ji bo Leaks kontrol bikin: Oil or coolant leaks can contaminate ignition coils and their connectors, leading to malfunctions. Address any leaks promptly.

7. Destpêkirin

A failing ignition coil can manifest several symptoms. If you experience any of the following, it may indicate a faulty ignition coil requiring replacement:

• Ronahiya Motorê Kontrol Bike: The most common indicator. A diagnostic scan tool can confirm a misfire code (e.g., P030X, where X is the cylinder number).
• Engine Misfires or Rough Idle: The engine may run unevenly, shake, or vibrate excessively, especially at idle.
• Reduced Power and Acceleration: A faulty coil can lead to a loss of engine power and slower acceleration.
• Kêmkirina Teserûfa Sotemeniyê: Inefficient combustion due to a weak spark can result in higher fuel consumption.
• Zehmetiya Destpêkirinê: A weak or absent spark can make the engine hard to start.
• Zêdebûna Emisyonan: Incomplete combustion can lead to higher levels of pollutants in the exhaust.

If you suspect a faulty ignition coil, it is recommended to have your vehicle diagnosed by a professional or use an OBD-II scanner to identify the specific cylinder affected.

8. Specifications

Wêne: Nêzîk view of the ignition coil highlighting key product details such as the 3-pin connector, OEM replacement design, durable boots, and high-quality rubber construction.

9. Garantî û Piştgirî

Nilight Ignition Coil Packs come with a manufacturer's warranty to cover defects in materials and workmanship.

• Garantiya Hilberîner: 2 sal.
• Siyaseta Vegerê: Products purchased are typically eligible for a refund or replacement within 30 days, subject to the retailer's return policy.

For technical support, warranty claims, or any questions regarding your Nilight product, please contact Nilight customer service through their official webmalper an firotgeha ku hilber lê hatî kirîn.
