HBN Slushie Machine (Model CP-UBS-800) Instruction Manual

Pêşkêş

Thank you for choosing the HBN Slushie Machine. This appliance is designed to create a variety of frozen beverages, including slushies, milkshakes, frappés, smoothies, and cocktails, with ease and convenience. This manual provides essential information for safe operation, setup, use, maintenance, and troubleshooting to ensure optimal performance and longevity of your machine.

Telîmatên Ewlekariya Girîng

Ji kerema xwe berî bikaranîna amûrê hemû rêwerzan bi baldarî bixwînin. Neşopandina van rêwerzan dikare bibe sedema şoka elektrîkê, agir, an birîndarbûna giran.

• Berî paqijkirinê an jî dema ku amûr nayê bikaranîn, her tim piştrast bikin ku ew ji prizê hatiye derxistin.
• Yekîneya sereke, kabloyê, an jî fîşê di nav av an şilekên din de nehêlin.
• Keep hands and utensils out of the container during operation to prevent injury and damage to the appliance.
• Tu amûrê bi têl an fîşa xerabûyî nexebitînin, an jî piştî ku amûr têkçû an jî bi ti awayî zirar dît.
• Ev amûr tenê ji bo karanîna malê ye. Li derve bikar neynin.
• Ensure the appliance is placed on a stable, flat surface during operation.
• Do not add ice, solid ingredients, or hot liquids directly into the freezing cylinder.
• Dema ku amûr tê bikar anîn ji nêz ve çavdêriya zarokan bikin.

Product Overview

Familiarize yourself with the components of your HBN Slushie Machine.

Wêne: Diagram illustrating the various parts of the HBN Slushie Machine, such as the handle, filling port, stirring blades, evaporator, control panel, base, cleaning brush, drip tray cover, and drip tray.

• Destik: For easy transport and positioning.
• Filling Port & Cover: Where liquids are poured into the machine.
• Stirring Blades: Rotate to ensure even freezing and slush consistency.
• Evaporator: The cooling cylinder responsible for freezing the liquid.
• Panela Kontrolê: Features an LED display for real-time temperature, preset modes, and thickness settings.
• Bingeh: Ji bo yekîneyê aramiyê peyda dike.
• Tank Lock Handle: Secures the liquid tank in place.
• Pour Spout: Dispenses the finished frozen drink.
• Firçeya Paqijkirinê: Included for thorough cleaning.
• Drip Tray & Cover: Collects any spills or drips from the pour spout.

Damezirandin

1. Ji berhevxistin: Hemû pêkhateyan bi baldarî ji pakêtê derxînin. Pakêtê ji bo hilanîn an veguhastina pêşerojê biparêzin.
2. Pak: Before first use, wash the removable parts (tank, auger, lid, drip tray) with warm, soapy water. Rinse thoroughly and dry. Wipe the main unit with a damp çît.
3. Berekirin: Place the stirring blades (auger) inside the tank, then secure the lid. Position the tank onto the main unit, ensuring it is properly locked with the tank lock handle. Place the drip tray and its cover beneath the pour spout.
4. Cihkirin: Place the machine on a stable, flat, and dry surface, away from direct sunlight or heat sources. Ensure adequate ventilation around the unit.
5. Têkiliya Hêzê: Kabloya elektrîkê bi priza elektrîkê ya erdîkirî (120V) ve girêdin.

Telîmatên Operating

Preparing Your Drink

1. Şileyê amade bikin: Ensure your beverage contains at least 6% sugar or 2.8%–16% alcohol for optimal slush consistency. Stir the mixture thoroughly before pouring. Do not add solid ingredients or hot liquids.
2. Add Drinks: Open the filling port cover and carefully pour your prepared beverage into the tank. Do not exceed the maximum fill line indicated on the tank.

Wêne: Illustrates the process of pouring liquid into the slushie machine, highlighting the internal stirring mechanism.

Making a Slushie

3. Moda Pêşkêşkirî Hilbijêre: Use the intuitive LED display and one-touch controls to select one of the 6 preset modes:
   • Slush: For standard frozen drinks.
   • Milkshake: For dairy-based frozen treats.
   • Frappé: For coffee shop style frozen drinks.
   • Av: For naturally sweetened beverages.
   • Spiked Slush: For alcoholic slushies.
   • Kokteyl: For mixed frozen alcoholic beverages.
4. Stûriyê Birêve Bike: The control panel allows you to choose from 9 thickness settings, from light and refreshing to thick and creamy. Adjust according to your preference. The real-time temperature display will show the current freezing progress.
5. Operasyonê dest pê bike: Press the start button. The machine will begin the freezing and stirring process. This typically takes 15-60 minutes, depending on the selected mode and desired thickness.
6. Belavkirin: Once the desired consistency is reached, place a glass under the pour spout and open the spout to dispense your frozen drink.

Wêne: Close-up of the control panel displaying the 6 preset modes and options for adjusting thickness and monitoring temperature.

Important Tips for Best Results

• For optimal slush texture, beverages should contain at least 6% sugar.
• For alcoholic beverages, ensure the alcohol content is between 2.8% and 16%.
• Do not add ice cubes or solid ingredients directly into the tank.
• Always stir the mixture before pouring it into the machine.
• The machine can keep drinks frozen for up to 10 hours without dilution.

Wêne: Guidelines for sugar and alcohol content in beverages to achieve the best slushie consistency.

Lênerrînî

Moda Xwe Paqijkirinê

The HBN Slushie Machine features a convenient one-touch self-cleaning mode:

1. After use, empty any remaining liquid from the tank.
2. Add clean water to the tank, and optionally, a drop of mild dish soap.
3. Press the "CLEAN" button on the control panel. The machine will automatically flush and clean the internal components.
4. Once the cycle is complete, drain the water and rinse the tank.

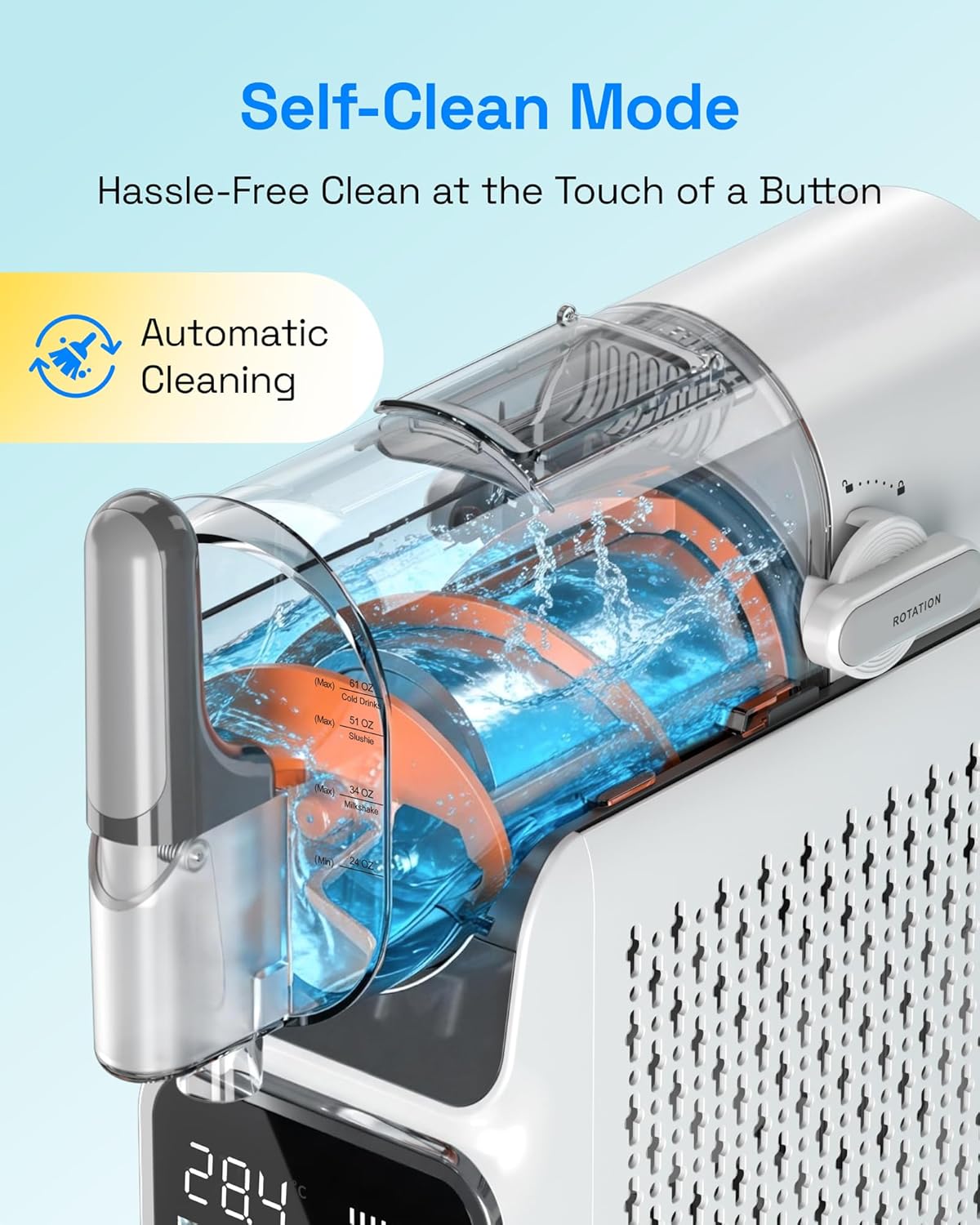

Wêne: The self-cleaning function in action, showing water being circulated within the tank.

Paqijkirina Kûrtir

For a more thorough cleaning, or if stubborn residue remains:

• Piştrast bikin ku makîneyê ji pêvekê ye.
• Detach the tank, auger, lid, and drip tray. These parts are dishwasher-safe for convenience.
• Use the included cleaning brush to remove any residue from hard-to-reach areas.
• Derveyê yekîneya sereke bi reklamê paqij bikinamp çît. Paqijkerên abrasive an şuştinê bikar neynin.
• Allow all parts to dry completely before reassembling or storing the machine.

Çareserkirina pirsgirêkan

If you encounter issues with your HBN Slushie Machine, please refer to the following common solutions:

Specifications

• Hejmara Model: CP-UBS-800
• Vessel Capacity: 88 oz
• Erk: 200W
• Voltage: 120V
• Mezinahiya pakêtê: 18.5 x 18 x 9 inches
• Giraniya Babetê: 25.1 lîre
• Sertîfîka: ETL Listed

Wêne: Diagram showing the dimensions, power, and voltage specifications of the HBN Slushie Machine.

Garantî û Piştgirî

The HBN Slushie Machine is backed by a Garantiya vegera drav 30-roj û a Garantiya 12 mehan from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal household use.

For any questions, concerns, or warranty claims, please contact our dedicated support team. Our team is available to assist you with product inquiries, operational guidance, and troubleshooting.

Please visit the official HBN website or refer to your purchase documentation for contact information.
