PURPLE LEAF 3x3m Teak Frame Pergola with Solar String Lights

1. Destpêk

This manual provides detailed instructions for the assembly, operation, and maintenance of your PURPLE LEAF 3x3m Teak Frame Pergola with Solar String Lights. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Taybetmendiyên sereke:

• Illuminated Exterior: Features a 7.3m long string of 12 weather-resistant and shock-resistant LED bulbs, powered by solar energy for extended life.
• Sêwirana Berfireh: The 3 x 3 meter pergola provides ample space for relaxation, with an open perimeter design to enhance air circulation.
• Avakirina Stable: The pavilion structure is crafted from powder-coated aluminum, ensuring stability, rust resistance, and improved resilience against wind and rain.
• Kanopiya Vekişîner: The awning can be freely adjusted to provide flexible shading as needed.
• Protective Awning Design: A small, fixed additional awning at the top of the pergola offers enhanced protection for the retracted canopy against UV rays and rainwater accumulation.
• Fabrîk domdar: The roof is made from solution-dyed fabric, offering UPF50+ protection, waterproofing, abrasion resistance, and fade resistance for increased durability.
• Civîna hêsan: The pergola is delivered in 2 packages and includes all necessary tools and illustrated instructions for straightforward installation.

2. Setup û Meclîsa

Before starting assembly, ensure all components are present by checking the contents against the packing list. Assembly typically requires two people.

Gavên Civînê:

1. Pakêt bike û Rêxistin bike: Carefully unpack all components and lay them out on a clean, flat surface. Verify all parts and hardware are accounted for.
2. Beşên Çarçoveyê Bicivîne: Connect the main frame sections using the provided hardware. Ensure all screws are tightened securely.

Image 2.1: Initial frame components laid out for assembly.

3. Attach Posts: Secure the vertical support posts to the assembled frame. Ensure they are upright and stable.

Image 2.2: Securing a vertical post to the pergola frame.

4. Install Retractable Canopy: Carefully attach the retractable canopy fabric to the designated tracks on the pergola frame. Follow the specific instructions for securing the fabric and its sliding mechanism.

Image 2.3: Attaching the retractable canopy.

5. Mount Solar Panel and String Lights: Position the solar panel in an area that receives maximum direct sunlight. Connect the solar string lights and drape them along the pergola structure as desired.

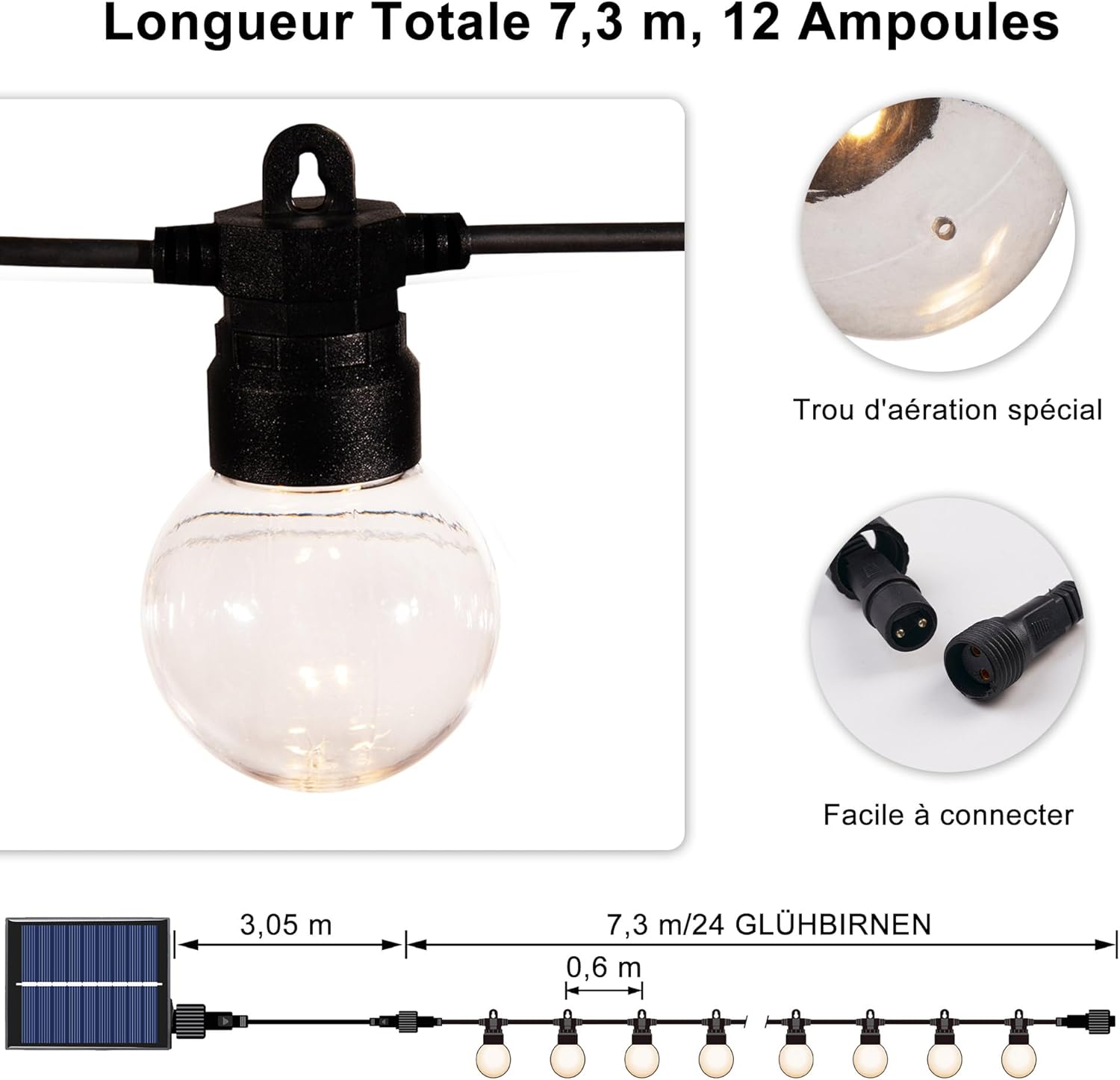

Image 2.4: Detail of the solar string lights.

Image 2.5: Solar panel installation for optimal charging.

Ji bo rêbernameyek dîtbarî, ji kerema xwe vîdyoya montajê ya li jêr binêrin:

3. Telîmatên Operating

Kanopiya Vekişîner:

The pergola features a retractable canopy that can be adjusted to control the amount of shade. Use the integrated pull handle or rod to smoothly extend or retract the fabric. Ensure the canopy is fully extended or retracted to prevent damage from wind or rain when not in use.

Image 3.1: Retractable canopy in use, providing shade.

Solar String Lights:

The solar string lights are designed to automatically turn on at dusk and off at dawn, provided the solar panel receives sufficient sunlight during the day. Ensure the solar panel is clean and unobstructed for optimal charging. There may be a power button on the solar panel to manually control the lights.

Image 3.2: Pergola illuminated by solar string lights at night.

4. Maintenance

Lênêrîna Çarçove:

The aluminum frame is powder-coated for durability and rust resistance. Clean the frame periodically with a soft cloth, mild soap, and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.

Canopy Fabric Care:

The solution-dyed fabric is waterproof and resistant to abrasion and fading. To clean, gently brush off loose dirt, then wipe with a damp cloth and mild soap. Rinse thoroughly and allow to air dry completely before retracting or storing. For prolonged life, especially during harsh weather conditions or off-season, it is recommended to retract the canopy or remove it if possible.

Solar Lights Care:

Keep the solar panel clean from dust, leaves, and debris to ensure efficient charging. Wipe the LED bulbs with a soft, damp cil ger qirêj bibin.

5. Destpêkirin

Canopy not retracting/extending smoothly:

• Check for any obstructions in the canopy tracks.
• Ensure the fabric is properly aligned and not snagged.
• Verify that all clips and attachment points are securely fastened.

Solar lights not turning on:

• Ensure the solar panel is placed in an area that receives at least 6-8 hours of direct sunlight daily.
• Clean the solar panel surface to remove any dirt or debris.
• Check if the power switch on the solar panel is in the 'ON' position.
• Allow the solar panel to charge for a full day before expecting lights to function at night.

6. Specifications

7. Garantî û Piştgirî

Your PURPLE LEAF pergola comes with a 30-day return policy and standard legal guarantees. We are committed to providing high-quality products and dedicated customer support.

For any questions, assistance with assembly, or to report missing/damaged parts, please contact PURPLE LEAF customer support. Our specialized team is ready to help you.

PURPLE LEAF specializes in the design of outdoor living products, including parasols, bioclimatic pergolas, gazebos, and sun loungers. We are dedicated to providing high-quality products and services to customers, utilizing quality technologies and premium materials with an environmentally responsible approach.
