Pirtûka Bikarhêner a Klîmaya Hewayê ya Portable ya COSTWAY 10000 BTU

1. Destpêk

This manual provides detailed instructions for the safe and efficient operation of your COSTWAY 10000 BTU Portable Air Conditioner, Model FP10585US-WH. Please read this manual thoroughly before installation and use, and retain it for future reference. This unit is designed to cool rooms up to 350 sq. ft. and offers cooling, fan, and dry modes.

Image 1.1: The COSTWAY 10000 BTU Portable Air Conditioner and its remote control. This unit is designed for efficient cooling in various indoor environments.

2. Telîmatên Ewlekariya Girîng

Ji bo kêmkirina metirsiya agir, şoka elektrîkê, an birîndarbûnê dema ku hûn klîma xwe bikar tînin, van tedbîrên bingehîn bişopînin:

• Berî ku amûrê bikar bînin hemî rêwerzan bixwînin.
• Têkeve nav dergehek 3-çînkî ya zevî. Kûçika erdê jê nekin.
• Adapterek bikar neynin.
• Kabloya dirêjkirinê bikar neynin.
• Berî servîsê klîmayê jê derxin.
• Ji bo barkirin û sazkirina klîmayê du an zêdetir kesan bikar bînin.
• Yekîneyê bi kabloya elektrîkê an fîşa xerabûyî nexebitînin.
• Piştrast bikin ku yekîne li ser rûyek rût û aram tê danîn.
• Qulên têketina hewayê û derizandinê ji astengiyan dûr bigirin.

3. Naveroka pakêtê

Verify that all items listed below are included in your package. If any parts are missing or damaged, contact customer service.

• 1 x Klîmaya Portable
• 1 x Air Exhaust Duct
• 1 x Air Exhaust Duct Connector
• 1 x Window Exhaust Adapter
• 1 x Baffle Plate
• 1 x Lûleya Avdanê (3.3 ft)
• 1 x Remote Control
• 1 x User Guide (This document)

Image 3.1: Visual representation of the product dimensions and all accessories included in the package.

4. Hilbera Serîview û Taybetmendî

The COSTWAY Portable Air Conditioner is designed for versatile cooling, dehumidifying, and fan operations. It features a compact design with built-in handles and rolling casters for easy mobility.

Image 4.1: The portable air conditioner is suitable for cooling multiple spaces such as living rooms, offices, dining rooms, and garages.

Taybetmendiyên sereke:

• Sarbûna Bi Hêz: 10000 BTU (ASHRAE) / 6500 BTU (SACC) capacity, suitable for rooms up to 350 sq. ft.
• Fonksiyona 3-di-1: Offers Cooling, Fan, and Dry (Dehumidifier) modes.
• Herikîna hewayê ya birêkûpêk: Features 120° left-right or up-down angle air sweeping function.
• Kontrolên Bikarhêner-Heval: Digital touch panel and remote control for easy adjustments.
• Operasyona Bêdeng: Operates at a low noise level of 50-54 dB.
• Teserûfa enerjiyê: 24-hour timer and Sleep mode for optimized energy consumption.
• Veguheztin: Equipped with 4 rolling casters and 2 built-in handles for easy movement.
• Lênêrîna hêsan: Removable and washable air filter.

Image 4.2: The unit features two built-in handles and four rolling casters for easy maneuverability between rooms.

Image 4.3: The air conditioner offers three operational modes: Cooling, Fan, and Dry (Dehumidification).

5. Sazkirin û Sazkirin

Proper installation is crucial for the efficient operation of your portable air conditioner. This unit can be installed in both horizontal and vertical windows.

5.1 Exhaust Hose Assembly

1. Connect the Air Exhaust Duct Connector to one end of the Air Exhaust Duct.
2. Connect the Window Exhaust Adapter to the other end of the Air Exhaust Duct.
3. Ji bo rêgirtina li rijandina hewayê, piştrast bikin ku hemî girêdan bi ewlehî ne.

5.2 Sazkirina Kîta Paceyan

The window kit is designed to fit most standard vertical and horizontal sliding windows with widths/heights between 25" and 47".

1. Adjust the Baffle Plate to fit your window opening. Secure it in place.
2. Insert the Window Exhaust Adapter into the opening of the Baffle Plate.
3. Connect the assembled exhaust hose to the rear exhaust port of the air conditioner.
4. Ensure the exhaust hose is as straight and short as possible to maximize efficiency. Avoid sharp bends.

5.3 Drainage Hose Connection (Dehumidifying Mode)

For continuous drainage, especially during dehumidifying mode, connect the drain hose.

1. Locate the continuous drainage port on the back of the unit.
2. Attach the provided Drain Hose to this port.
3. Direct the other end of the hose to a suitable drain or container, ensuring it is lower than the unit's drainage port for gravity flow.

6. Operasyon

Your portable air conditioner can be controlled via the digital touch panel on the unit or the included remote control.

Wêne 6.1: Serview of the control panel and remote control buttons for easy operation.

6.1 Panela Kontrolê û Fonksiyonên Ji Dûr

• Bişkojka Hêzê (⑂): Yekîneyê vedike an digire.
• Bişkoka Modê (☼): Cycles through Cooling, Fan, and Dry modes.
• Bişkoka Lezê (☰): Leza fanosê diguherîne (Bilind/Nizm).
• Temperature/Timer Up (+) / Down (-) Buttons: Adjusts desired temperature (61℉-88℉) or sets timer duration.
• Bişkoka Lerizînê (⇲): Activates or deactivates the automatic louver swing function (120°).
• Bişkoka Xewê (⏰): Activates Sleep mode for quiet, energy-efficient operation during sleep.
• Bişkoka Demjimêr (⏲): Sets the 24-hour On/Off timer.

6.2 Modes Operating

• Moda sarkirinê: Select this mode for active cooling. Set your desired temperature using the Up/Down buttons. The unit will cool until the room reaches the set temperature.
• Moda Fan: Circulates air without cooling. Use the Speed button to select High or Low fan speed.
• Dry (Dehumidifying) Mode: Removes excess moisture from the air. The unit will operate at a fixed low fan speed. Ensure the continuous drain hose is connected for this mode.

Image 6.2: The unit features low noise operation, a 24-hour timer, and a sleep mode for enhanced comfort.

7. Maintenance

Parastina birêkûpêk performansa çêtirîn misoger dike û temenê klîmaya we dirêj dike. Berî ku hûn her cure parastinê bikin, her tim cîhazê ji prizê veqetînin.

7.1 Paqijkirina Parzûna Hewayê

Divê fîltera hewayê her du hefteyan carekê, an jî li gorî karanîn û qalîteya hewayê pirtir were paqijkirin.

1. Klîmayê vekin û jê derxin.
2. Locate the air filter panel (usually on the back or side of the unit).
3. Parzûnê rakin.
4. Fîlterê bi ava germ û sabûnî bişo. Bi tevahî bişo.
5. Berî ku hûn ji nû ve saz bikin, bila fîlter bi tevahî li hewayê zuwa bibe. Nehêlin rasterast bikeve ber tîrêjên rojê.
6. Fîltera hişk ji nû ve têxe nav yekîneyê.

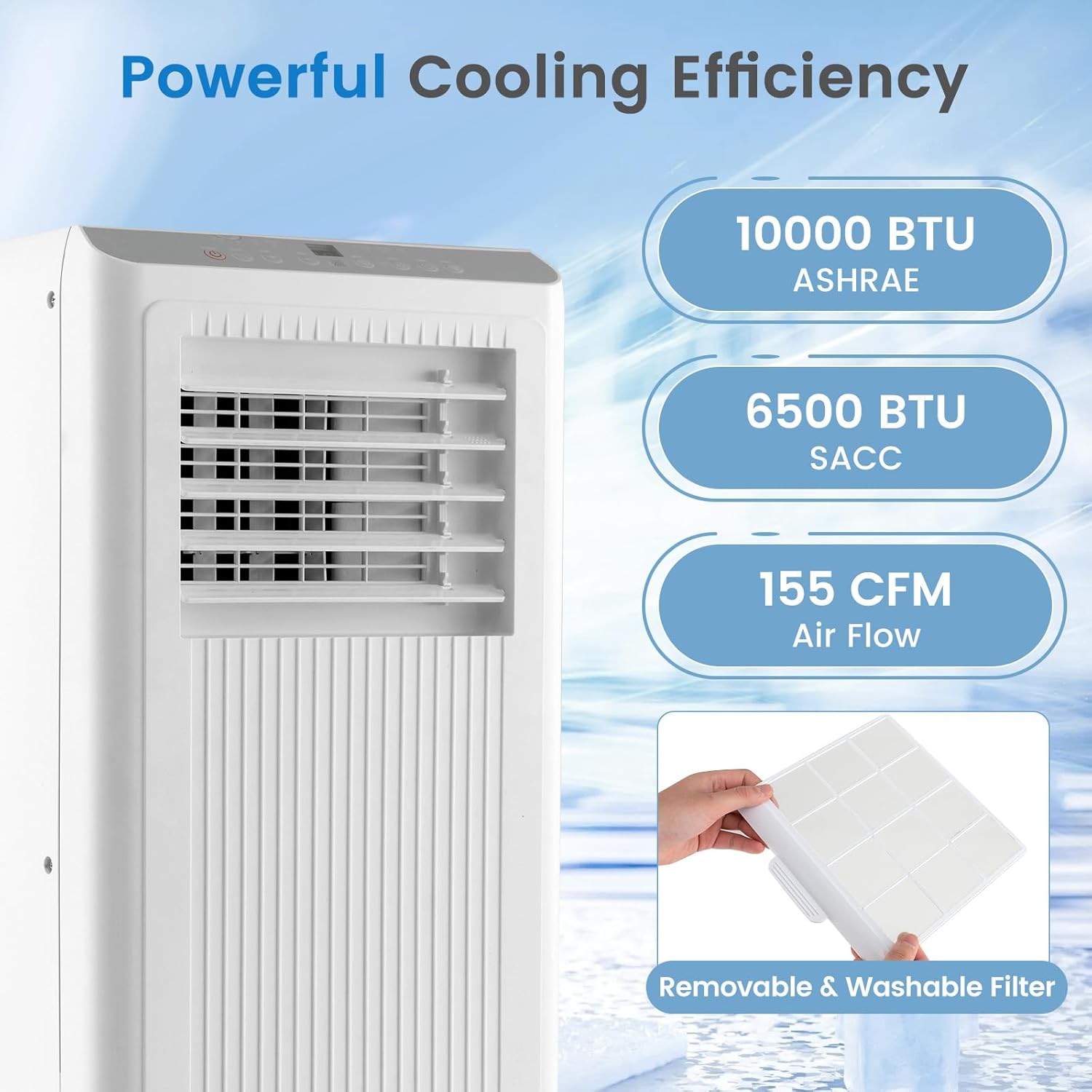

Image 7.1: The removable and washable filter is easily accessible for cleaning.

7.2 Avêtina Ava Berhevkirî

The unit has a self-evaporative system, but in high humidity conditions, water may accumulate. The unit will indicate when the water tank is full.

1. Klîmayê vekin û jê derxin.
2. Tepsiyeke an tepsiyeke kêm kûr li binê deriyê avdanê yê li pişta jêrîn a yekîneyê deynin.
3. Ji bo ku av biherike, pêça avê jê bikin.
4. Piştî ku valahî çêbû, pêça valakirinê bi ewlehî vegerînin şûna wê.

8. Destpêkirin

Ji bo pirsgirêkên hevpar û çareseriyên wan li tabloya jêrîn binêre. Ger pirsgirêk berdewam bike, bi piştgiriya xerîdaran re têkilî daynin.

9. Specifications

10. Garantî û Piştgiriya Mişterî

For warranty information, technical assistance, or to report missing/damaged parts, please contact COSTWAY customer support. Refer to your purchase documentation for specific warranty terms and contact details.

You can typically find support contact information on the official COSTWAY webmalperê an jî bi rêya firoşkarê xwe.
