VirtuFit Elite Water Resistance Rower Instruction Manual

Pêşkêş

Thank you for choosing the VirtuFit Elite Water Resistance Rower. This manual provides essential information for the safe and effective assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before use and keep it for future reference.

Wêne: Alî view of the VirtuFit Elite Water Resistance Rower, showcasing its black finish and water tank.

Agahiyên Ewlekariyê

Before starting any exercise program, consult with your physician. It is crucial to understand and follow all safety precautions to prevent injury.

• Always perform a warm-up before and a cool-down after your workout.
• Inspect the rower for any loose or damaged parts before each use. Do not use if any components are compromised.
• Ensure the rower is placed on a stable, level surface with adequate clear space around it.
• Di dema xebatê de zarok û heywanên heywanan ji amûran dûr bixin.
• Cilên werzîşê yên guncaw û pêlav li xwe bikin.
• Eger hûn êş, gêjbûn, an jî tengbûna bêhna xwe bibînin, tavilê werzîşê rawestînin.

Damezirandin

1. Civîn

While specific assembly steps are not detailed here, the rower typically requires some initial setup. Refer to the separate assembly guide included with your product for detailed instructions. Ensure all bolts, nuts, and moving parts are securely fastened before first use.

2. Dagirtina Depoya Avê

1. Locate the water tank cap on the top of the rower's water tank.
2. Kapê jê bikin.
3. Use the provided hand pump and funnel to fill the tank with clean tap water to the desired resistance level. The water level directly influences resistance.
4. Add a water purification tablet (PuriTab) to the tank to keep the water clean and prevent algae growth.
5. Kapa tankê bi ewlehî veguherînin.

3. Console Battery Installation

The console is powered by batteries. Locate the battery compartment, typically on the back or underside of the console. Insert 4x AA batteries, ensuring correct polarity. Close the compartment securely.

Telîmatên Operating

1. Understanding the Console

Image: Close-up of the VirtuFit Elite Rower's LCD console, showing various workout metrics and control buttons.

The backlit LCD console displays key workout metrics such as time, distance, strokes, watts, calories, and pulse (with compatible heart rate monitor). Use the buttons to navigate through different programs and settings:

• AWA: Cycles through display modes or confirms selections.
• JOR JÊR: Adjusts values or navigates menus.
• DESTP / / STOP: Begins or pauses your workout.
• RESET: Clears current workout data.
• DÎSADÎTINÎ: Initiates the recovery test function.
• BLUETOOTH: Activates Bluetooth for app connectivity and heart rate monitor pairing.

2. Rêkxistina Berxwedanê

The water resistance system provides a dynamic and smooth rowing experience. Resistance is naturally adjusted by your rowing intensity and speed. For a higher base resistance, increase the water level in the tank. For lower resistance, remove water from the tank using the provided pump.

3. Bernameyên Xebatê

The console offers various training programs:

• Moda Manual: Start rowing and track your metrics without a predefined program.
• Bernameyên navberê: Pre-set or customizable intervals for varied intensity training.
• Bernameyên Armanc: Set goals for time, distance, or calories.
• Recovery Test: Measures your heart rate recovery to assess fitness levels.

4. Bluetooth Connectivity and Apps

Image: The VirtuFit Elite Rower with a tablet mounted on its holder, displaying the Kinomap fitness application during a virtual rowing session.

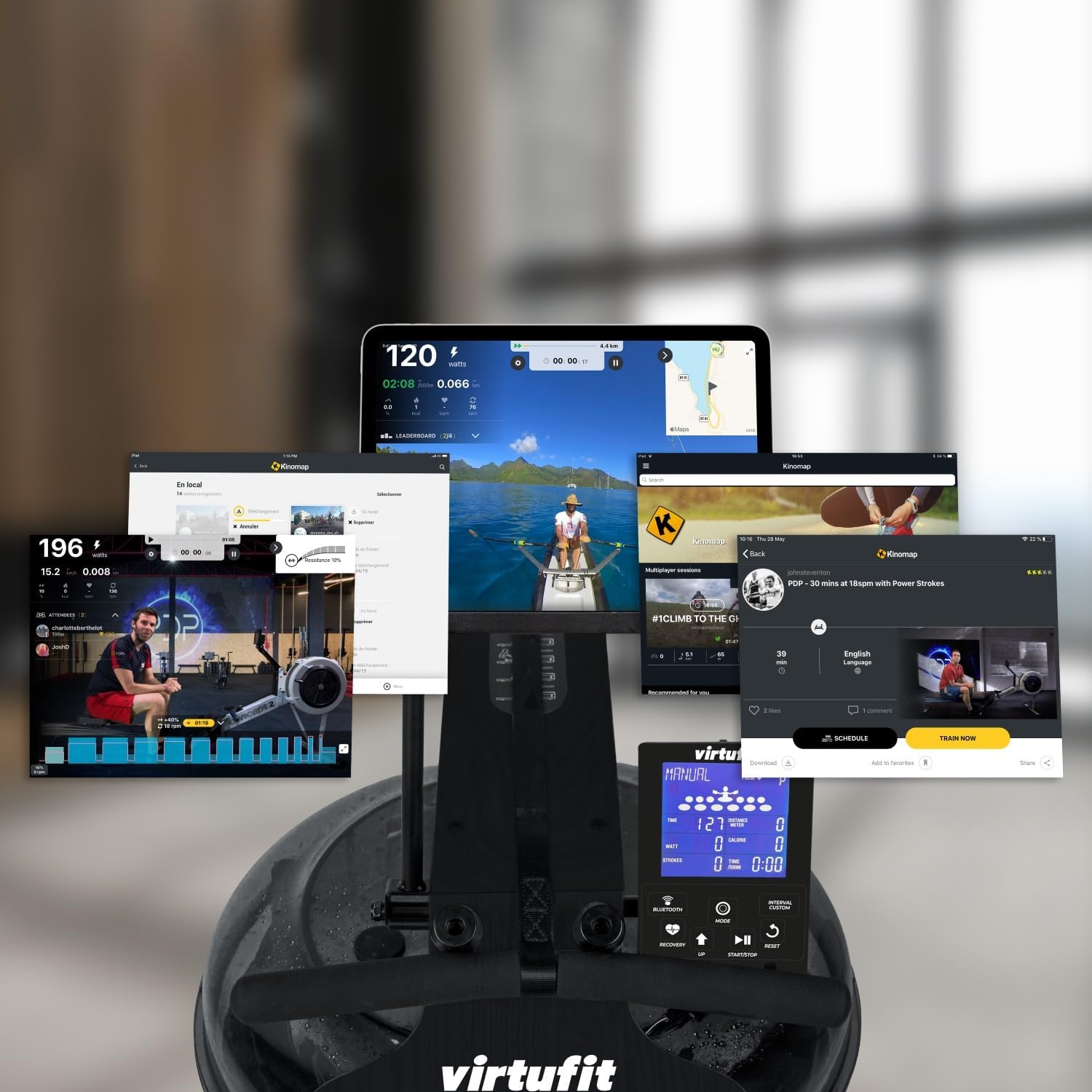

Image: A collage of various screens demonstrating the Kinomap application's diverse features and integration with the VirtuFit Rower, including virtual routes and workout data.

The rower features Bluetooth connectivity for enhanced training options:

• Çavdêriya Rêjeya Dil: Pair a 5 kHz heart rate chest strap (not included) to monitor your pulse on the console.
• Fitness Apps: Connect your rower to popular fitness applications like Kinomap via Bluetooth. Use the integrated tablet holder to view your device while exercising.

Image: A smartphone screen showing an augmented reality (AR) view of the VirtuFit Rower placed virtually in a room, with a QR code for scanning. This feature allows users to visualize the rower in their space before purchase.

Explore the rower in your space using Augmented Reality: VirtuFit AR Experience

5. Basic Rowing Technique

Proper rowing technique is essential for an effective and safe workout. The rowing stroke consists of four phases:

1. Girtî: Knees bent, shins vertical, arms extended forward, back straight, shoulders relaxed.
2. Drive: Push off with your legs, then swing your back, and finally pull with your arms.
3. Dawî: Legs extended, lean back slightly, handle pulled to your lower chest/upper abdomen.
4. Vegerandin: Extend arms forward, then lean forward from the hips, and finally bend your knees to slide forward.

Wêne: Nêzîk view of the foot straps and the rowing handle, illustrating the connection points for the user during exercise.

Lênerrînî

1. Paqijkirina Avê

To maintain water clarity and prevent microbial growth, add a water purification tablet (PuriTab) to the water tank every 3-6 months, or as needed. If the water becomes discolored, it may need to be replaced and the tank cleaned.

2. Paqijkirin

• Wipe down the rower with a damp cilê piştî her bikaranîn ji bo rakirina ter û tozê.
• Avoid using abrasive cleaners or solvents, as these can damage the finish and components.
• Periodically clean the rails and seat rollers to ensure smooth operation.

3. Storage

The VirtuFit Elite Rower is designed for convenient storage. After your workout, the rower can be stored vertically to save space. Ensure the rower is stable and secure in its upright position.

Image: The VirtuFit Elite Water Resistance Rower shown in its vertical storage position, demonstrating its space-saving design.

Çareserkirina pirsgirêkan

• Konsol Nayê Nîşandan: Cihê bateriyê kontrol bike û piştrast be ku bateri neqediyane. Ger pêwîst be biguherîne.
• No Resistance or Uneven Resistance: Verify the water level in the tank. Ensure the impeller is not obstructed.
• Dengên neasayî: Inspect all connections and moving parts for looseness. Lubricate moving parts if recommended in the assembly guide.
• Pirsgirêkên Têkiliya Bluetooth: Ensure Bluetooth is enabled on both the rower console and your device. Try restarting both devices.

Specifications

Garantî û Piştgirî

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or spare parts, please contact VirtuFit customer service or your local distributor. Keep your proof of purchase for warranty claims.
