Renkforce RF-HC-100 16 Megapixel Trail Camera User Manual

1. Destpêk

1.1 Product Overview

The Renkforce RF-HC-100 is a compact 16-megapixel trail camera designed for outdoor monitoring. It features a time-lapse function, night vision capabilities, and a durable, camouflage brown housing. This camera is suitable for wildlife observation, property surveillance, and other outdoor recording needs.

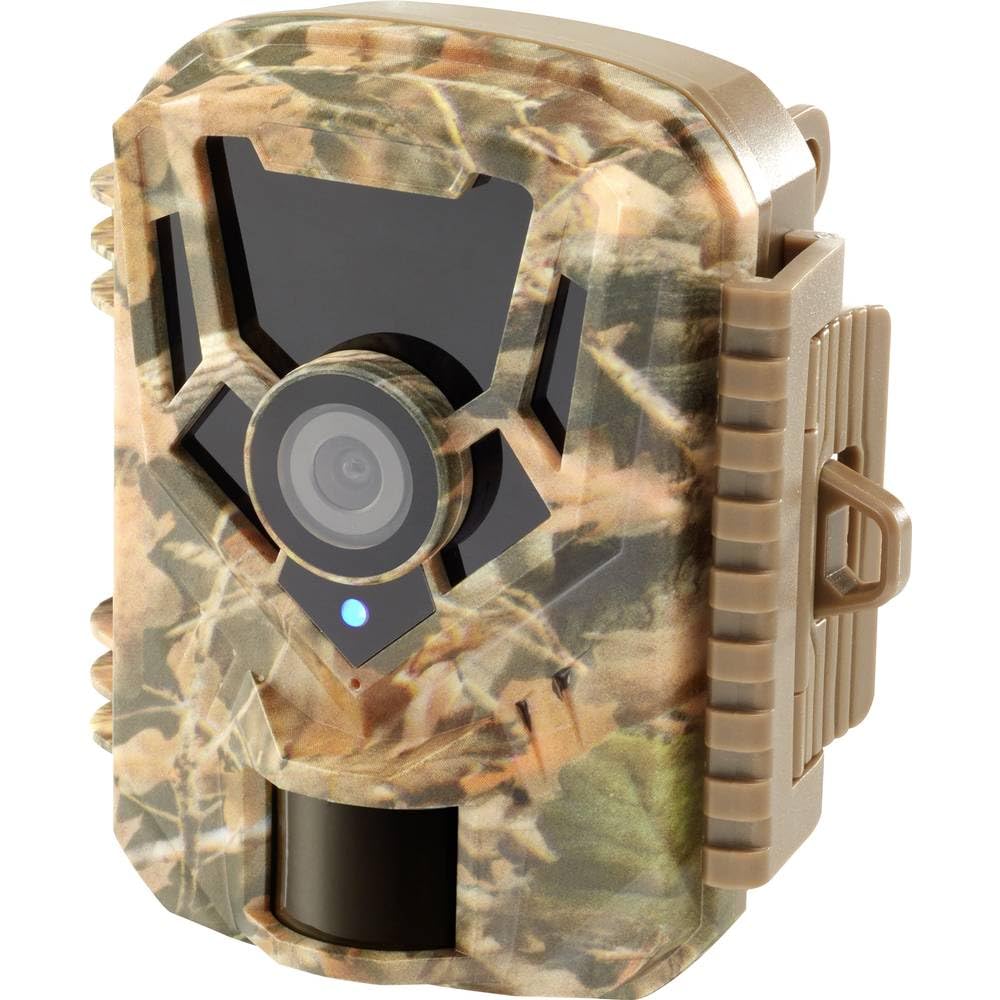

Wêne: Rûyê pêş view of the Renkforce RF-HC-100 Trail Camera, showcasing its compact design and camouflage pattern.

Wêne: Pêşî view of the Renkforce RF-HC-100 Trail Camera, highlighting the main lens and motion sensor.

1.2 Naveroka pakêtê

• 1 x Renkforce RF-HC-100 Trail Camera Unit
• Note: Additional accessories such as mounting straps, USB cables, or user manuals may be included depending on the specific package.

2. Agahiyên Ewlekariyê

• Berî xebitandina amûrê, hemî rêwerzan bi baldarî bixwînin.
• Do not expose the camera to extreme temperatures, direct sunlight for prolonged periods, or corrosive liquids.
• Ensure the battery compartment is properly sealed to maintain the IP65 weather resistance.
• Dispose of batteries according to local regulations. Do not mix old and new batteries or different types of batteries.
• Amûrê ji destê zarokan dûr bigirin.
• Do not attempt to disassemble or modify the camera, as this will void the warranty and may cause damage.

3. Taybetmendiyên Hilberê

The Renkforce RF-HC-100 Trail Camera offers the following key features:

• Wênekirina Çareseriya Bilind: 16 Megapixel effective capture resolution for clear photos and 1080p video recording.
• Dîtina şevê: Equipped with color night vision for monitoring in low-light conditions.
• Time-Lapse Function: Capture images at set intervals to observe long-term events.
• Slota qerta SD: Supports external SD cards for ample storage of photos and videos.
• Berxwedana hewayê: IP65 international protection rating ensures durability in various outdoor environments.
• Sêwirana Compact: Miniature form factor with a camouflage brown finish for discreet placement.
• Wide Angle View: 90-degree angle of view to cover a broad area.
• Têkilî: Features wired connectivity (USB, AV ports) and Wi-Fi protocol for data transfer and control via application.
• Vebijarkên Mountkirinê: Includes support for wall mounting.

4. Sazkirin

4.1 Sazkirina Pîl

1. Bi vekirina klîpên kêlekê qutiya kamerayê vekin.
2. Cihê beşa pîlê bibînin.
3. Insert the required number of AA batteries (not included) according to the polarity markings (+/-).
4. Parçeya pîlê bi ewlehî bigire.

4.2 Sazkirina Karta SD

1. Dema ku qutiya kamerayê vekirî ye, cihê karta SD bibîne.
2. Insert a compatible SD card (up to 32GB, Class 10 recommended) into the slot with the metal contacts facing down until it clicks into place.
3. To remove, push the SD card in again until it springs out.

Image: The Renkforce RF-HC-100 Trail Camera with its housing open, revealing the control panel, USB, AV, and DC ports, and the ON/SETUP/OFF switch.

4.3 Çêkirina Kamera

The camera can be mounted using a strap or a wall mount bracket (if included or purchased separately).

• Sazkirina Kemberê: Thread a mounting strap through the slots on the back of the camera and secure it to a tree or pole.
• Çêkirina dîwar: Use the integrated mounting points or a compatible wall mount bracket to attach the camera to a flat surface. Ensure the camera is stable and pointed in the desired direction.

5. Telîmatên Operating

5.1 Vekirin/Girtin û Hilbijartina Modê

Locate the ON/SETUP/OFF switch inside the camera housing.

• JI: Powers off the camera.
• DAMEZIRANDIN: Enters setup mode, allowing you to configure settings via the internal display.
• LI: Activates the camera for recording based on the configured settings.

5.2 Configuring Settings

In SETUP mode, use the navigation buttons (if available) to access the menu and adjust parameters such as:

• Çareserkirina Wêne/Vîdyoyê
• PIR Sensor Sensitivity
• Derengiya Detection
• Navbera Dem-Dema
• Dîrok û Dem
• Recording Mode (Photo, Video, Photo+Video, Time-Lapse)

5.3 Vegerandina daneyan

Ji bo gihîştina qeydkirî files:

• Bi rêya USB: Connect the camera to a computer using a USB cable. The camera will appear as a removable disk.
• Bi rêya karta SD: Remove the SD card from the camera and insert it into a computer's card reader.

6. Maintenance

• Paqijî: Use a soft, dry cloth to clean the camera lens and housing. For stubborn dirt, a slightly damp dikare qumaş were bikar anîn, lê piştrast bikin ku şil nekeve nav cîhazê.
• Guhertina Pîl: Replace batteries when the low battery indicator appears or when performance degrades.
• Rêvebiriya Karta SD: Regularly format the SD card (after backing up important data) to maintain optimal performance and prevent errors.
• Embarkirinî: Dema ku hûn ji bo demek dirêj bikar neynin, pîlan derxînin û kamerayê li cîhek sar, hişk û dûr ji tîrêjên rojê yên rasterast hilînin.

7. Destpêkirin

8. Specifications

9. Garantî û Piştgirî

Renkforce provides support for its products. Spare parts availability is indicated for 1 year from the date of purchase. For technical assistance, troubleshooting beyond this manual, or warranty claims, please refer to the contact information provided with your product packaging or visit the official Renkforce website.
