Pêşkêş
This manual provides instructions for the Extreme Networks Summit X460-24p, a high-performance, managed Layer 3 Ethernet switch designed for enterprise and data center environments. It features 24 Gigabit Ethernet ports with Power over Ethernet (PoE) capabilities, along with additional SFP and shared Gigabit SFP ports for flexible connectivity.
Agahiyên Ewlekariyê
Rêbernameyên Ewlekariyê
- Always disconnect all power supply inputs before removing any panel for servicing.
- This device contains a Class 1 Laser product. Avoid direct eye exposure to beam.
- Di dema sazkirinê de zemînek rast piştrast bikin.
- Refer to the installation manual for power cord selection and additional compliance markings.
Naveroka pakêtê
Di Box çi ye
- Extreme Networks Summit X460-24p Switch
- Kabloya Hêzê (taybetî bi herêmê)
- Rack-mount kit
- Belgekirin (ev rêbername)
Product Overview
The Summit X460-24p switch is designed for efficient network management and high-speed data transfer.
Panela paşîn
This image displays the rear panel of the Summit X460-24p switch, highlighting the power input, fan modules, and the SummitStack ports. The overall chassis is purple.
A berfireh view of the SummitStack ports (Stack Port 1 and Stack Port 2) located on the rear of the switch, used for stacking multiple switches.
Labelê hilberê

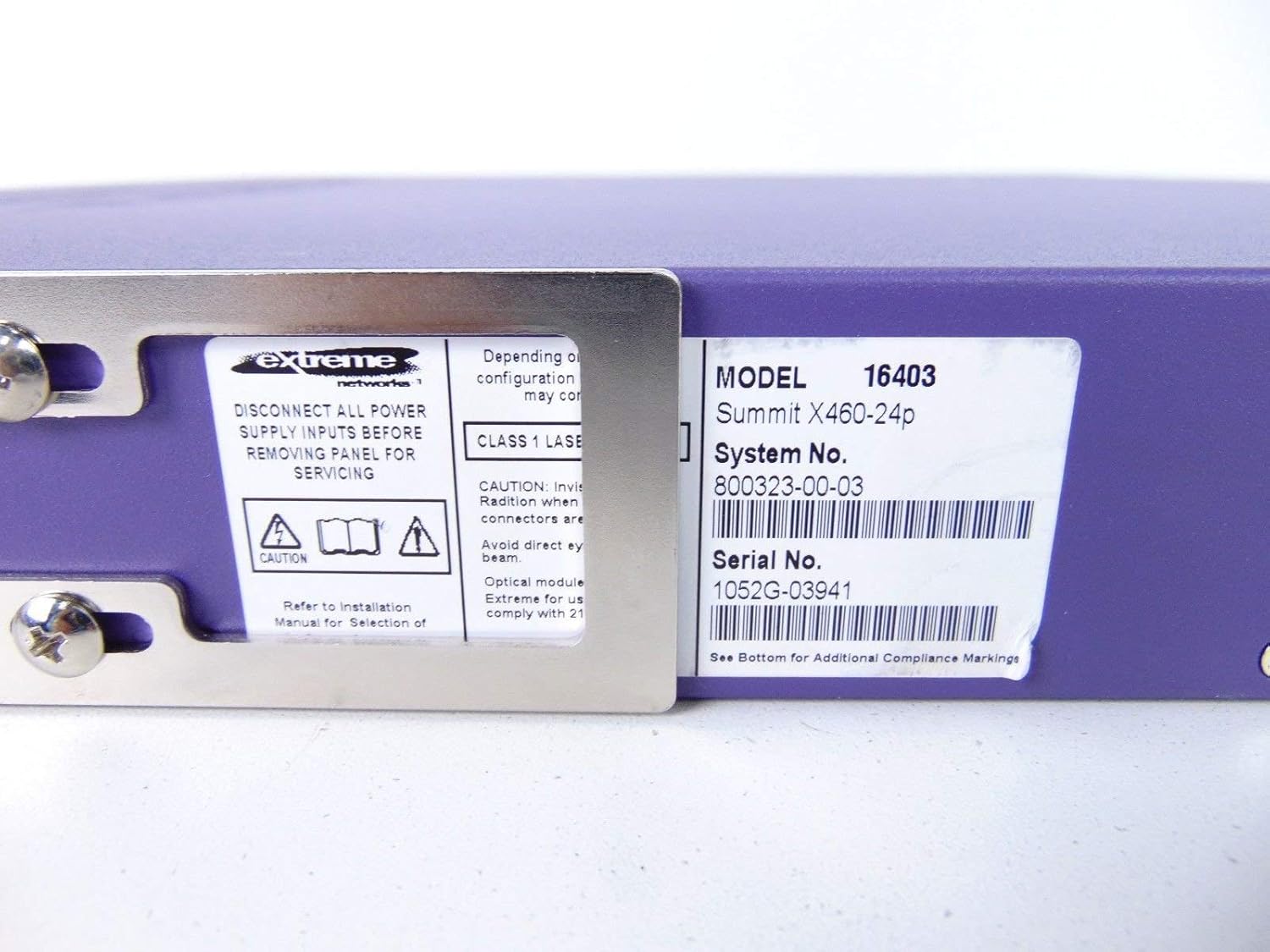

This label provides critical identification information for the switch, including Model: 16403, Summit X460-24p, System No.: 800323-00-03, and Serial No.: 1052G-03941.
Pêkhateyên Bijarî
This image shows the label for an optional Extreme Networks Summit 750W PoE AC Power Supply Unit (PSU), Model 10931, System No. 800382-00-03, Serial No. 1053A-41986.
This image displays the label for an optional Extreme Networks SummitStack Module, Model 16419, System No. 800384-00-01, Serial No. 1122G-02565.
Damezirandin
Installation Guide
Rack Mounting
The Summit X460-24p is designed for standard 19-inch rack mounting. Use the provided rack-mounting kit to secure the switch in a server rack. Ensure adequate ventilation around the unit.
Hêza girêdanê
Connect the power cord to the AC power inlet on the rear of the switch and then to a grounded electrical outlet. The switch will power on automatically.
Girêdana kabloyên torê
- Connect Ethernet cables from your network devices to the 24 10/100/1000Base-T PoE ports on the front panel.
- For uplink or fiber connections, use the SFP or shared Gigabit SFP ports.
- For stacking, connect SummitStack ports on multiple switches using appropriate stacking cables.
Initial Configuration Access
Access the switch's management interface via a console cable connected to the console port, or through a web browser if the switch has a default IP address configured. Refer to the Extreme Networks documentation for detailed initial setup procedures.
Telîmatên Operating
Operasyona bingehîn
Power On / Off
The switch powers on automatically when connected to a power source. To power off, disconnect the power cord. For proper shutdown, it is recommended to use the software-based shutdown command if available.
Nîşaneyên LED
Observe the LED indicators on the front panel for status information regarding power, system health, port activity, and PoE status. Consult the full product documentation for a detailed explanation of each LED's behavior.
Navrûya Birêvebirinê
The switch can be managed via a Command Line Interface (CLI) accessible through the console port or Telnet/SSH, or through a web-based graphical user interface (GUI).
Lênerrînî
Lênêrîn û Maintenance
Paqijî
Keep the switch clean and free of dust. Use a soft, dry cloth for external cleaning. Do not use liquid or aerosol cleaners.
Nûvekirinên Firmware
Periodically check the Extreme Networks support website for firmware updates to ensure optimal performance and security. Follow the provided instructions for firmware upgrade procedures.
Modulên Fan û Dabînkirina Hêzê
The switch may feature hot-swappable fan and power supply modules. Refer to the Extreme Networks documentation for instructions on replacement if necessary.
Çareserkirina pirsgirêkan
Pirsgirêkên Hevbeş
Hêz tune
- Piştrast bike ku kabloya elektrîkê bi ewlehî hem bi guhêrbar û hem jî bi priza elektrîkê ve girêdayî ye.
- Piştrast bikin ku priza elektrîkê dixebite.
Port Link Down
- Girêdana kabloya Ethernet li her du aliyan kontrol bikin.
- Piştrast bikin ku cîhaza girêdayî vekirî ye û bi rêkûpêk dixebite.
- Check the port status via the management interface.
Pirsgirêkên Girêdana Torê
- Verify IP configuration and network settings.
- Check for conflicting IP addresses.
- Consult network diagnostics tools.
Specifications
Taybetmendiyên Teknîkî
| Taybetî | Terîf |
|---|---|
| Cins | Summit X460-24p (Part Number: 16403) |
| Ports | 24 x 10/100/1000Base-T PoE+ ports, 4 x shared Gigabit SFP, 4 x SFP |
| Pel | Layer 3 Guhestina Birêvebir |
| Nîşan | Networks Extreme |
| Cureyê Navrûyê | PoE, SFP |
| Hejmara Pergalê | 800323-00-03 |
| Xwarinên lezok | 1052G-03941 |
| UPC | 683332278646 |
Garantî û Piştgirî
Agahî Garantî
This product typically comes with a 90-day limited warranty. For specific warranty terms and conditions, please refer to the official Extreme Networks warranty statement or contact your vendor.
Piştgiriya Teknîkî
For technical assistance, visit the official Extreme Networks support website or contact their customer service. Have your product model and serial number ready when seeking support.
