1. Hilbera Serîview
The Einhell TC-TC 800 Tile Cutter is designed for precise and efficient cutting of wall and floor tiles. This robust tool is suitable for various home renovation projects, offering clean cuts with minimal dust thanks to its water cooling system.
Taybetmendiyên sereke:
- Robust Stainless Steel Table: Measuring 395 x 385 mm, it is easy to clean and features an angular scale up to 45° with non-slip feet for stable operation.
- Precise Cutting Guide: Ensures exact and straight cuts. The angle stop is adjustable from -45° to +45° for miter cuts.
- Integrated Water Reservoir: Provides necessary water cooling for the saw blade, protecting it from heat damage.
- Kapasîteya birrîn: Maximum cutting height of 14 mm at 45° and 34 mm at 90°.
- Parastina Ewlekariyê: A protective guard for the cutting disc ensures user safety from chips and dust.
2. Telîmatên Ewlekariyê
Hemû hişyariyên ewlehiyê, rêwerz, wêne û taybetmendiyên ku bi vê amûra elektrîkê re hatine dayîn her tim bixwînin û fêm bikin. Neşopandina hemû rêwerzên ku li jêr hatine navnîş kirin dibe ku bibe sedema şoka elektrîkê, agir û/an birîndarbûna giran.
Hişyariyên Ewlekariya Giştî:
- Wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, and gloves.
- Piştrast bike ku cihê xebatê paqij, baş ronîkirî û bê asteng e.
- Dema ku amûrê xebitandin zarok û temaşevanan dûr bixin.
- Never operate the tool if the power cord or plug is damaged.
- Always disconnect the power supply before making any adjustments, changing accessories, or performing maintenance.
- Ji bo materyalê ku tê qut kirin çîçek rast bikar bînin.
- Ensure the water reservoir is adequately filled before operation to prevent overheating of the blade.
3. Components Serview
Familiarize yourself with the main components of your Einhell TC-TC 800 Tile Cutter:
- Cutting Table (Stainless Steel)
- Diamond Cutting Disc (180 mm diameter)
- Yekîneya Motor
- Reservoir Avê
- Cutting Guide with Scale
- Angle Stop (-45° to +45°)
- Nobedarên Blade
- Veguheztin/Off
- Hilgirtina Handle
Wêne 1: Serview of the Einhell TC-TC 800 Tile Cutter with its main parts.
4. Sazkirin
Before operating the tile cutter, ensure proper setup for safety and optimal performance.
4.1 Vekirin û Teftîşkirin
- Bi baldarî hemî pêkhatan ji pakêtê derxînin.
- Inspect the tool for any signs of damage during transit. Do not operate if damaged.
- Piştrast bike ku hemî pêkhateyên navnîşkirî hene.
4.2 Dagirtina Depoya Avê
The integrated water reservoir is essential for cooling the diamond cutting disc and reducing dust.
- Locate the water reservoir beneath the cutting table.
- Fill the reservoir with clean water to the indicated level. Ensure the water pump is submerged.
- Regularly check the water level during operation and refill as needed.
Figure 2: Filling the water reservoir for wet cutting.
4.3 Adjusting the Cutting Guide and Angle Stop
For accurate cuts, adjust the cutting guide and angle stop as required.
- The cutting guide with scale ensures straight cuts. Position it according to your desired measurement.
- For miter cuts, adjust the angle stop between -45° and +45°. Secure it firmly before cutting.
Figure 3: Adjustable angle stop for miter cuts.
5. Telîmatên Operating
Follow these steps for safe and effective tile cutting.
5.1 Hêzdarkirin/Off
- Connect the tile cutter to a suitable power outlet (240 Volts).
- To turn on, press the green 'ON' button.
- To turn off, press the red 'OFF' button.

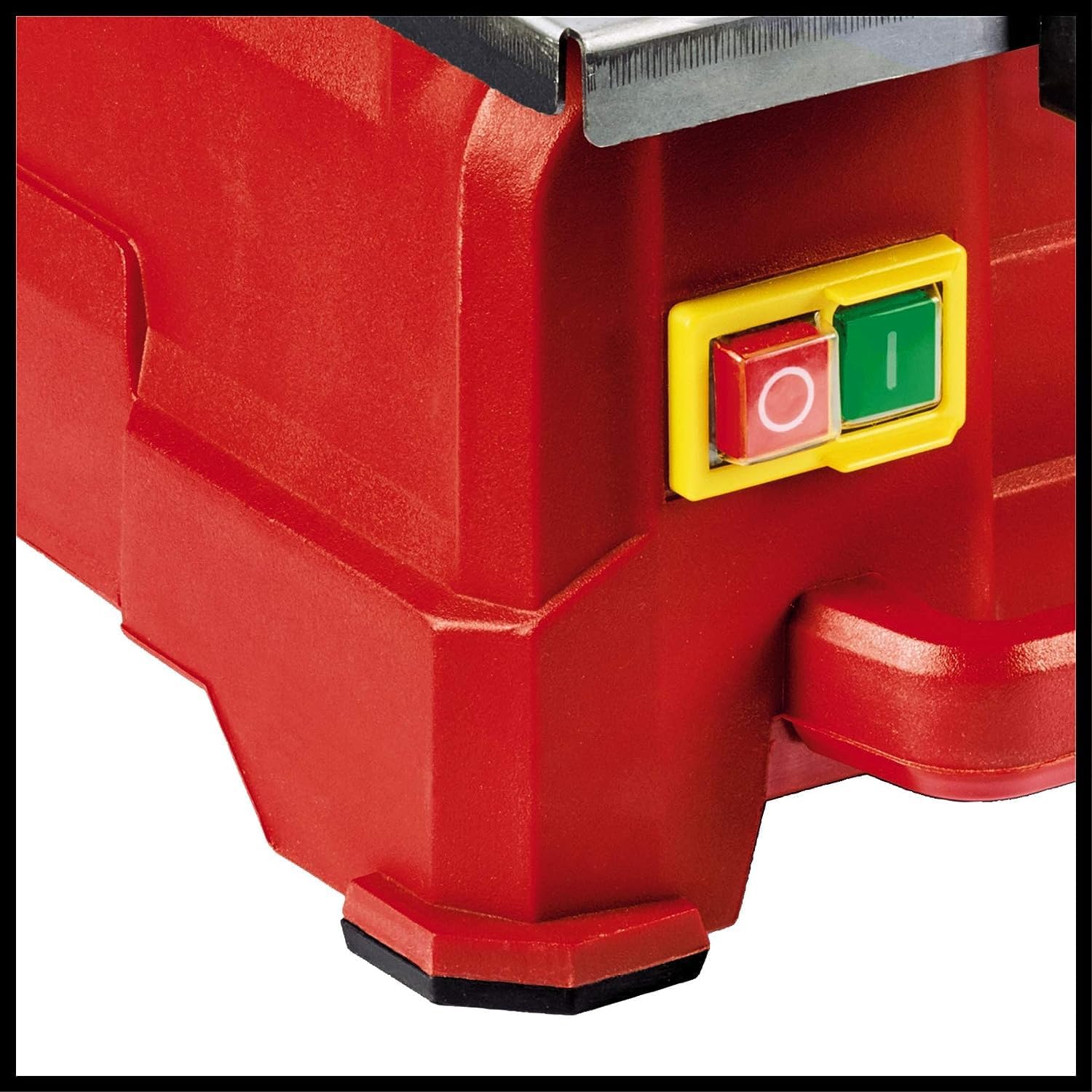

Figure 4: Power switch for turning the machine on and off.
5.2 Çêkirina Birînekê
- Place the tile firmly on the stainless steel cutting table, aligning it with the cutting guide or angle stop as desired.
- Ensure the water pump is active and water is flowing to the blade.
- Turn on the tile cutter.
- Slowly and steadily push the tile through the rotating diamond blade. Avoid excessive force.
- Once the cut is complete, turn off the tile cutter and wait for the blade to stop before removing the tile.
Figure 5: Demonstrating a tile being cut with the machine.
5.3 Official Product Video: How to Use
Video 1: This video demonstrates the basic operation and usage of a tile cutter, including setup and cutting techniques.
6. Maintenance
Regular maintenance ensures the longevity and performance of your tile cutter.
6.1 Cleaning the Water Reservoir
After each use, clean the water reservoir to prevent buildup of tile dust and debris.
- Têrkirina hêzê qut bikin.
- Remove the cutting table or access panel to reach the reservoir.
- Empty the dirty water and thoroughly clean the reservoir with fresh water.
- Pêkhatan ji nû ve bicivînin.
6.2 Replacement Blade
Replace the diamond cutting disc when it becomes dull or damaged.
- Piştrast bike ku amûr ji prizê hatiye veqetandin.
- Use the provided tool to loosen the blade retaining nut.
- Carefully remove the old blade and install the new 180 mm diamond cutting disc, ensuring it is correctly oriented.
- Tighten the retaining nut securely.
7. Destpêkirin
This section addresses common issues you might encounter with your tile cutter.
| Pirsegirêk | Sedema gengaz | Çare |
|---|---|---|
| Poor cut quality (chipping, uneven edges) | Dull or incorrect blade; insufficient water cooling; pushing too fast. | Replace blade with a suitable diamond disc; ensure water reservoir is full and pump is working; reduce feeding speed. |
| Water overflow from table | Water channels blocked; reservoir too full; uneven surface. | Clean water channels; do not overfill reservoir; ensure the machine is on a level surface. |
| Makîne dest pê nake | Dabînkirina elektrîkê tune ye; guhêzbarê xirabe ye; pirsgirêka motorê. | Check power connection and circuit breaker; test the power outlet; contact customer support if switch or motor is faulty. |
| Rusted screws/components | Lack of proper drying/maintenance after wet use. | Regularly clean and dry all metal components after use. Apply a rust preventative lubricant (e.g., WD-40) to screws and moving parts. |
8. Specifications
| Taybetî | Hûrî |
|---|---|
| Nîşan | Einhell |
| Hejmara Model | 4301185 |
| Erk | 800 Watt |
| Voltage | 240 Volt |
| Zûbûnî | 2950 RPM |
| Diamond Cutting Disc Diameter | 180 mm |
| Max. Cutting Height (90°) | 34 mm |
| Max. Cutting Height (45°) | 14 mm |
| Angle of Cut | 45 Dereceyan |
| Table Dimensions (L x W) | 39.6 cm x 38.5 cm |
| Mezinahiyên hilberê (L x W x H) | 39.6l. x 38.5an. x 25.5al. centimeters |
| Giraniya hilberê | 9.1 Kîlo |
| Çavkaniya Hêzê | Elektrîkî bi kabloyê |
| Taybetmendiyên Taybet | Adjustable angle stop, parallel stop with scale |
9. Garantî û Piştgirî
9.1 Agahî Garantî
This Einhell product comes with a 2-salî ermanî sînorkirîJi kerema xwe delîla kirînê ji bo her îdîayên garantiyê biparêzin.
9.2 Piştgiriya Mişterî
For technical assistance, spare parts, or warranty inquiries, please contact Einhell customer service. Refer to the official Einhell webji bo agahdariya têkiliyê ya herî nûjen, malper an pakêta hilberê xwe bibînin.
