This manual provides detailed instructions for the installation, operation, and maintenance of your Kuryakyn 3231 LED Under Tour-Pak Light. This accessory is designed to provide additional run and turn signal lighting for enhanced visibility and aesthetic integration on compatible motorcycles. Please read this manual thoroughly before installation and use.

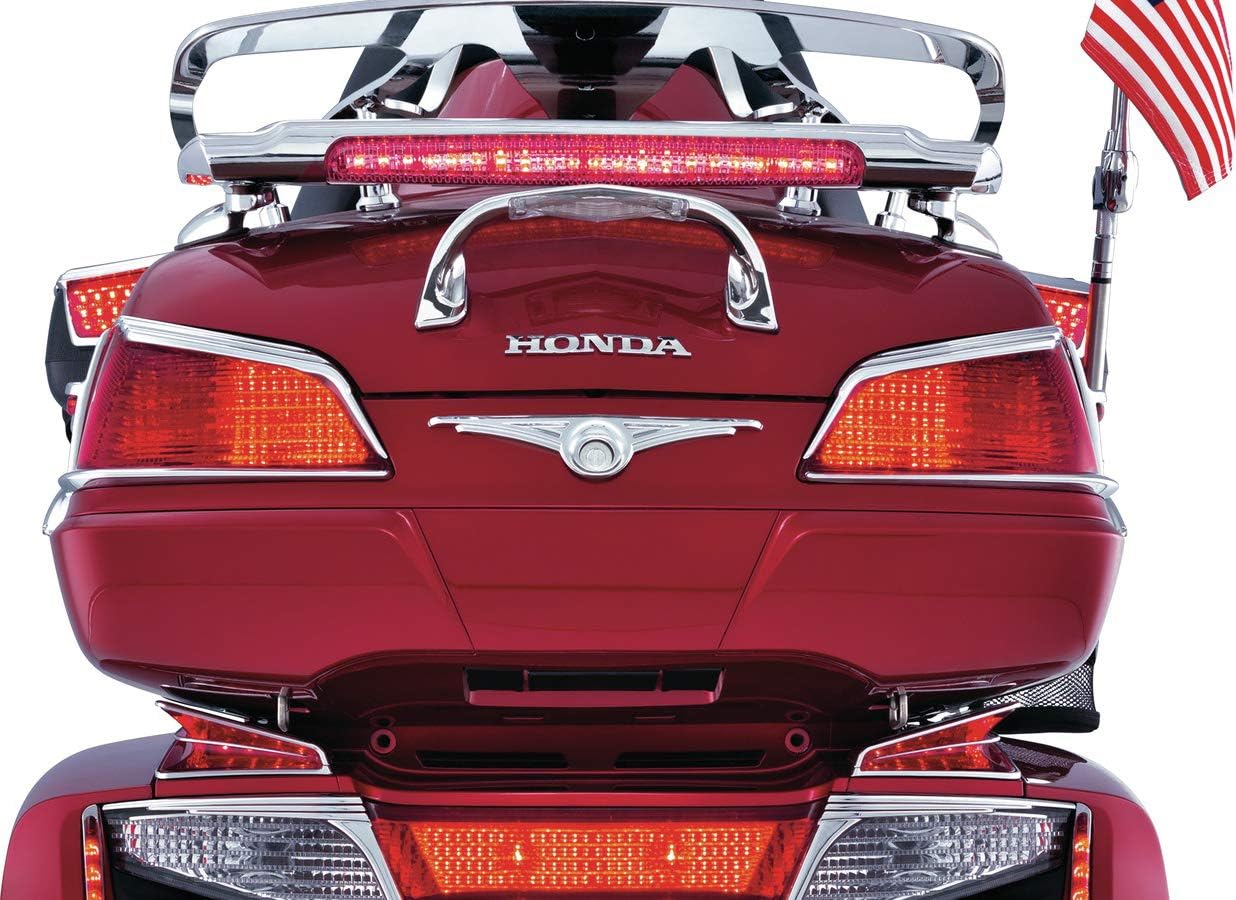

Figure 1: Kuryakyn 3231 LED Under Tour-Pak Light installed on a Honda Gold Wing.
Sazkirin û Sazkirin
Compatibility
- Compatible with Honda Gold Wing GL1800 models from 2012-2017 (excluding F6B).
- Requires a rear accessory harness (not included) for proper electrical connection.
Pêkhateyên Tê de
Berî destpêkirina sazkirinê, piştrast bikin ku hemî pêkhate li wir in:
- 1x Right Chrome Under Tour-Pak Accent with integrated LED light
- 1x Left Chrome Under Tour-Pak Accent with integrated LED light
- 1x "Y" Wiring Harness
- 2x Alcohol Pads
- 2x Dielectric Grease Packets
- 6x Têlên Cable
- 1x Y-Connector
Amûrên Pêşniyarkirî (Tê Nabe)
- Metric Hex Wrench Set
- Basic hand tools (screwdrivers, wire cutters/strippers if needed)
Pêngavên Sazkirinê
- Amadekarî: Ensure the motorcycle is turned off and the ignition key is removed. Disconnect the negative terminal of the battery to prevent accidental electrical shorts during installation.
- Cihê montajkirinê bibînin: Identify the area under the Tour-Pak where the accent lights will be installed. Refer to your motorcycle's service manual for specific panel removal instructions if necessary.
- Rûyê Paqij: Use the provided alcohol pads to thoroughly clean the mounting surfaces on the motorcycle. Allow the surface to dry completely. This ensures proper adhesion if adhesive backing is present on the accent pieces.
- Install Accent Pieces: Carefully position the Right and Left Chrome Under Tour-Pak Accents. Ensure they align correctly with the contours of the motorcycle. Secure them in place according to the product's design (e.g., using existing fasteners or adhesive backing).
Figure 2: Close-up of the Kuryakyn 3231 LED accent light unit.
- Têkiliya Têlê: Connect the LED lights from the accent pieces to the provided "Y" Wiring Harness. Apply dielectric grease to all electrical connections to protect against moisture and corrosion.
- Connect to Motorcycle Harness: Connect the "Y" Wiring Harness to the motorcycle's rear accessory harness (not included). This connection will integrate the LED lights with the motorcycle's existing run and turn signal circuits. Ensure all connections are secure.
- Têlkirina Ewle: Use the provided cable ties to neatly route and secure all wiring, preventing it from interfering with moving parts or being exposed to excessive heat or abrasion.
- Fonksiyona testê: Reconnect the motorcycle battery. Turn on the ignition and test the run and turn signal functions to ensure the new LED lights operate correctly.
- Civîna Dawî: Reinstall any panels or covers that were removed during the installation process.
Telîmatên Operating
The Kuryakyn 3231 LED Under Tour-Pak Lights are designed to operate automatically in conjunction with your motorcycle's existing electrical system. Once properly installed, they will function as follows:
- Run Lights: When the motorcycle's ignition is on, the LED lights will illuminate, providing continuous additional rear lighting.
- Sînyalên Zivirînê: When the turn signal is activated, the corresponding LED light will flash in sync with the motorcycle's main turn signals.
Figure 3: Illuminated LED strip detail.
Lênerrînî
To ensure the longevity and optimal performance of your Kuryakyn 3231 LED Under Tour-Pak Lights, follow these maintenance guidelines:
- Paqijî: Clean the chrome accent pieces and LED lenses regularly with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive materials that could scratch the chrome or damage the LED lenses.
- Kontrola Têlê: Periodically inspect all wiring connections for tightness and signs of wear, corrosion, or damage. Ensure cable ties are secure and wires are not chafing against any surfaces.
- Mohra Waterproof: While the product is waterproof, avoid directing high-pressure water sprays directly at the light units or electrical connections during washing.
Çareserkirina pirsgirêkan
If you experience issues with your Kuryakyn 3231 LED Under Tour-Pak Lights, refer to the following common problems and solutions:
| Pirsegirêk | Sedema gengaz | Çare |
|---|---|---|
| Ronahî ronî nabin. | Loose electrical connection, blown fuse, incorrect wiring, faulty accessory harness. | Check all wiring connections for tightness. Inspect the motorcycle's fuse box for a blown fuse related to accessory lighting. Verify wiring against the installation instructions. Ensure the rear accessory harness is correctly installed and functional. |
| Lights flicker or operate intermittently. | Loose connection, corrosion at terminals, damaged wiring. | Inspect all connections for looseness or corrosion. Clean terminals if necessary and apply dielectric grease. Check wiring for any cuts or damage. |
| Turn signals do not flash correctly. | Incorrect wiring to turn signal circuit, incompatible flasher relay (unlikely with LED-compatible systems). | Re-check the connection to the motorcycle's turn signal circuit. Ensure the accessory harness is correctly integrated. |
Specifications
| Taybetî | Hûrî |
|---|---|
| Nîşan | Kuryakyn |
| Hejmara Model | 3231 |
| Çavkaniya Ronahî | LED |
| Taybetmendiyên Taybet | Waterproof |
| Cihkirin | Rear (Under Tour-Pak) |
| Mezinahiya Babetê (L x W x H) | 48.3 x 8.9 x 8.9 cm (19 x 3.5 x 3.5 înç) |
| Compatibility | Honda Gold Wing GL1800 (2012-2017, excluding F6B) |
| Civîna Pêdivî ye | No (product itself), Installation on motorcycle required. |
Wêne 4: Alî view showing the placement of the Kuryakyn 3231 LED light.
Agahî Garantî
Kuryakyn products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the official Kuryakyn webmalperê an jî bi karûbarê xerîdar re têkilî daynin. Ji bo her îdîaya garantiyê delîla kirîna xwe biparêzin.
Piştgiriya Mişterî
If you have any questions regarding the installation, operation, or troubleshooting of your Kuryakyn 3231 LED Under Tour-Pak Light, please visit the official Kuryakyn website for FAQs and support resources. You may also contact Kuryakyn customer service directly for assistance.
Webmalper: www.kuryakyn.com
